Kia Sorento: Front Wheel Speed Sensor Components - ESC(Electronic Stability Control) System - Brake System - Kia Sorento XM 2011-2022 Service ManualKia Sorento: Front Wheel Speed Sensor Components

Second Generation XM (2011-2022) / Kia Sorento XM 2011-2022 Service Manual / Brake System / ESC(Electronic Stability Control) System / Front Wheel Speed Sensor Components

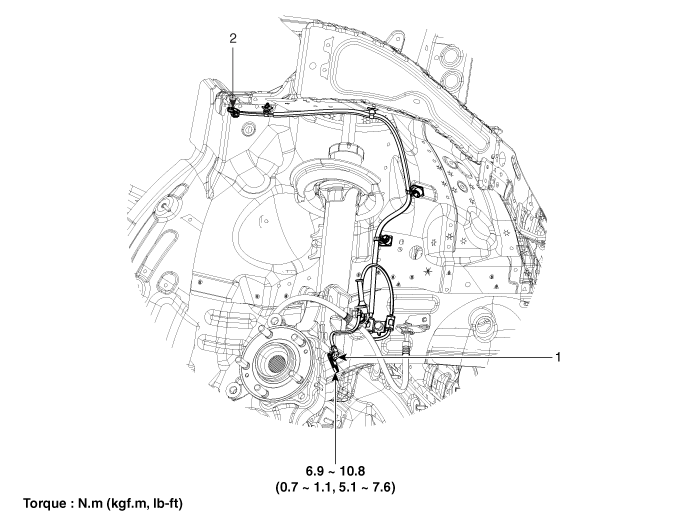

1. Front wheel speed sensor
2. Front wheel speed sensor connector
