Kia Sorento: Temperature Control Actuator Replacement - Heater - Heating,Ventilation And Air Conditioning - Kia Sorento XM 2011-2026 Service ManualKia Sorento: Temperature Control Actuator Replacement

Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Heating,Ventilation And Air Conditioning / Heater / Temperature Control Actuator Replacement

[Driver's side]
1.
Disconnect the negative (-) battery terminal.
2.
Using a screwdriver or remover, remove the driver's side crash pad side cover.
3.

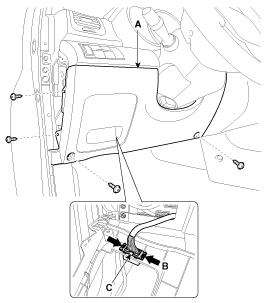

After loosening the mounting screws, remove the crash pad lower panel (A).
4.
Push the lock pin (B), disconnect the diagnosis connector (C).
5.
After loosening the mounting bolts, then remove the reinforce panel (A).
6.
Remove the driver's side shower duct after loosening the screw.
7.
Disconnect the temperature control actuator connector (A).
8.
Remove the temperature control actuator (B) after loosening the mounting screws.
9.
Install in the reverse order of removal.
[Passenger's side]
1.
Disconnect the negative (-) battery terminal.
2.
Remove the cowl side trim.
(Refer to Body - "Crash Pad")
3.
Using a screwdriver or remover, remove the crash pad side cover (A).
4.

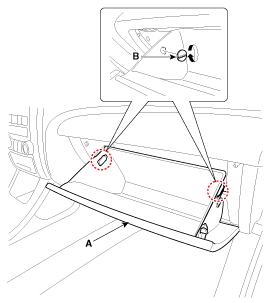

Disconnect the stopper (B) from the glove box (A).
5.
Disconnect the air damper (A) from the glove box (B).
6.

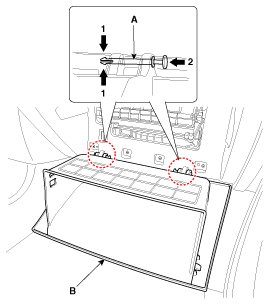

Disconnect the pins (A) and then remove the glove box (B).
7.
After loosening the mounting screws, then remove the crash pad side garnish [RH] (A).
8.
After loosening the mounting screws, then remove the crash pad under cover (A).
9.
After loosening the mounting screws, then remove the glove box housing (A).
10.
Disconnect the glove box lamp connector (A).
11.

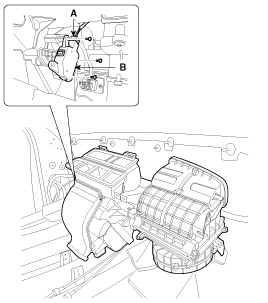

Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
12.
Install in the reverse order of removal.
