1.
Install the rear wiper motor assembly.

Tightening torque Nut :
7 ~ 11 N.m (0.7 ~ 1.1 kgf.m, 5 ~ 7.9 lbf-ft)

2.
Install the tailgate trim.
3.
Install the rear wiper arm and rear wiper cap.

Tightening torque Nut(B) :
4 ~ 7 N.m (0.4 ~ 0.7 kgf.m, 2.9 ~ 5.0 lbf-ft)

4.
Install the rear wiper arm and blade to align with black rear defogger line (A).

5.

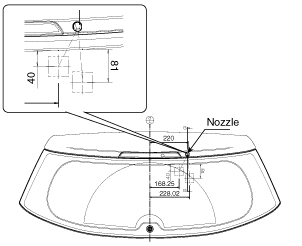

Set the rear washer nozzle on the specified spray position.

Specified position
Distance (in)
Distance (mm)
A
1.57
40
B
3.18
81
C
8.66
220
D
6.61
168
E
8.97
228

Rear Wiper Motor Removal
1. Detach the rear wiper cap (A). 2. Remove the rear wiper arm & blade (A) after removing rear wiper HEX nut (B). ...

Rear Washer Switch Inspection
Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal condition, replace wiper and wiper switch. Rear Wiper Switch Rear Washer Swi ...
