Kia Sorento: Oil Pump Component - Hydraulic System - Automatic Transaxle System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Oil Pump Component

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump Component

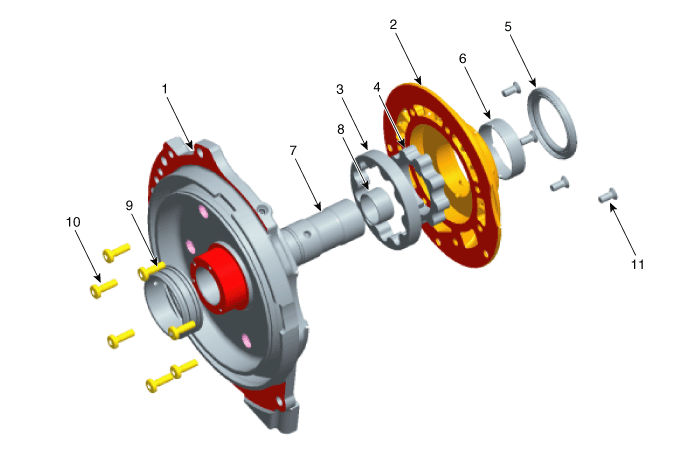

1. Reaction shaft support assembly
2. Oil pump housing
3. Driven gear
4. Drive gear
5. Oil seal
6. Bush-Housing
7. Reaction shaft
8. Bush- Reaction shaft
9. Sleeve
10. Flange bolt
11.Bolt

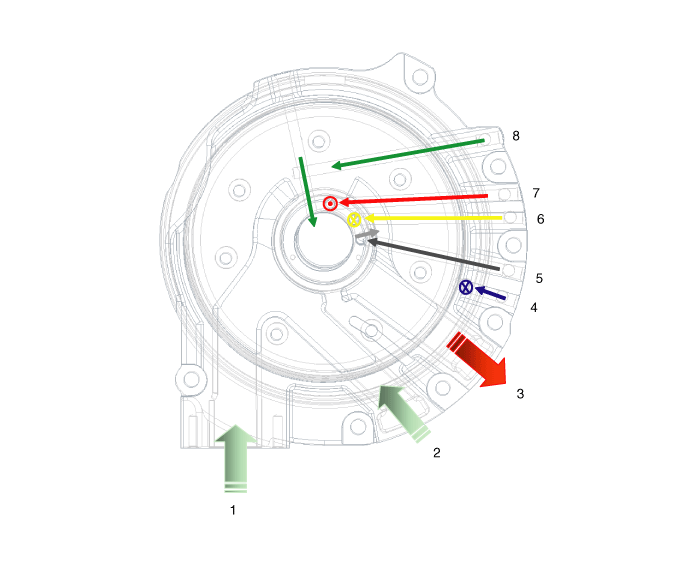

Oil pump operation flow

1. Inhale(Oil filter)
2. Inhale(Valve body)
3. Outlet
4. 26/B operation pressure
5. 35R/C operation pressure
6. Lubrication
7. Lock up clutch operation pressure
8. Lock up clutch cancellation
