Kia Sorento: Master Cylinder Components - Brake System - Brake System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Master Cylinder Components

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Brake System / Brake System / Master Cylinder Components

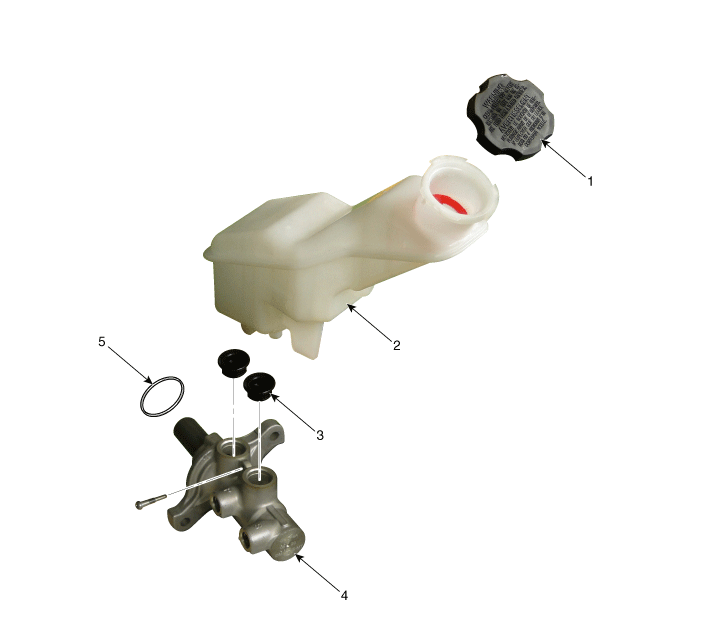

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder
