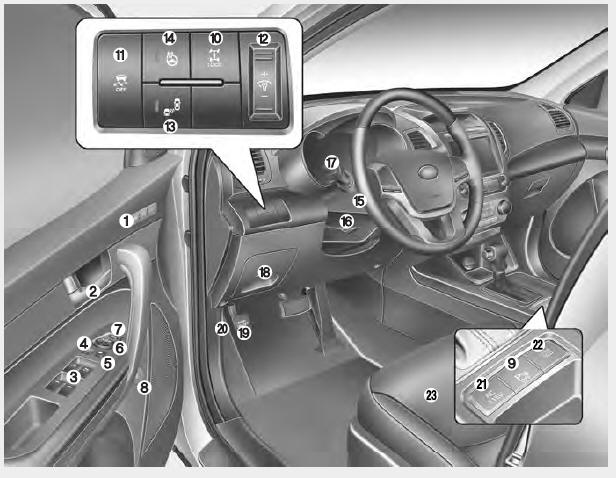

1. Driver position memory system button


1. Driver position memory system button
2. Inside door handle
3. Power window switch
4. Central door lock switch
5. Power window lock button
6. Outside rearview mirror control
7. Outside rearview mirror folding
8. Fuel filler lid open switch
9. Parking assist system On/Off button
10. AWD Lock button
11. ESC Off button
12. Instrument panel illumination control switch
13. BSD On/OFF button
14. Steering wheel
15. Steering wheel warmer On/Off Button
16. Tilt and telescopic steering control lever
17. Lighting control lever
18. Inner panel fuse panel
19. Parking brake pedal
20. Hood release lever
21. AC inverter
22. Active ECO
23. Seat
