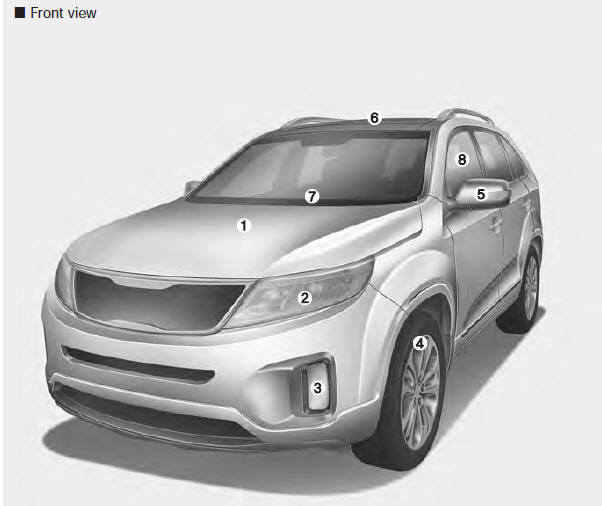

1. Hood


1. Hood
2. Head lamp
3. Fog lamp
4. Wheel and tire
5. Outside rearview mirror
6. Panorama sunroof
7. Front windshield wiper blades
8. Windows

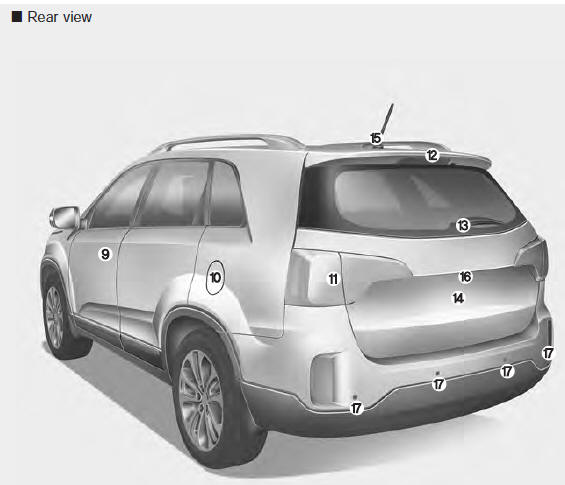

9. Door locks


9. Door locks
10. Fuel filler lid
11. Rear combination lamp
12. High mounted stop lamp
13. Rear window wiper blade
14. Tailgate
15. Antenna
16. Rearview camera
17. Parking assist system
