Kia Sorento: Installation - Automatic Transaxle - Automatic Transaxle System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Installation

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Automatic Transaxle System / Automatic Transaxle / Installation

1.
Install in the reverse order of removal.

If the oil seal on the transaxle case side is damaged and fluid is leaking, replace the oil seal with a new unit.
When installing the new oil seal, use the specialized tool.
2WD both side: 09453-3L240
4WD transaxle case side: 09453-3L240
4WD transaxle housing side : 09453-2W100

After replacement or reinstallation procedure of the automatic transaxle assembly, must perform procedures below.
•
Adding automatic transaxle fluid.
(Refer to Hydraulic System - "Fluid")
•
Adding coolant.
(Refer to Engine Mechanical System - "Coolant")
•
After replacing the automatic transaxle, clear the Diagnostic Trouble Code(DTC) using the GDS tool. DTC cannot be cleared by disconnecting the battery.
•

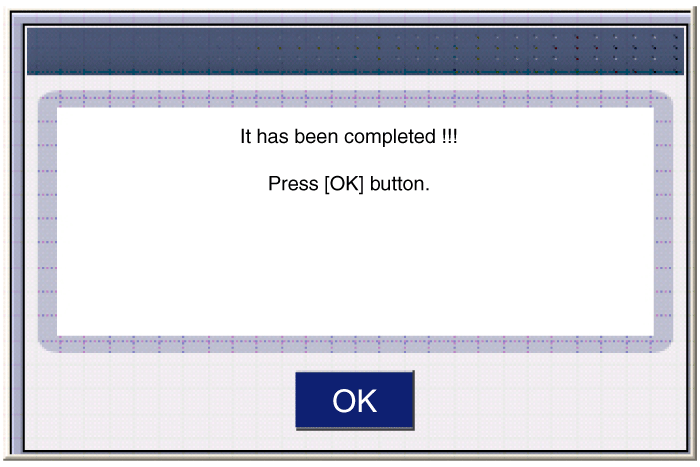

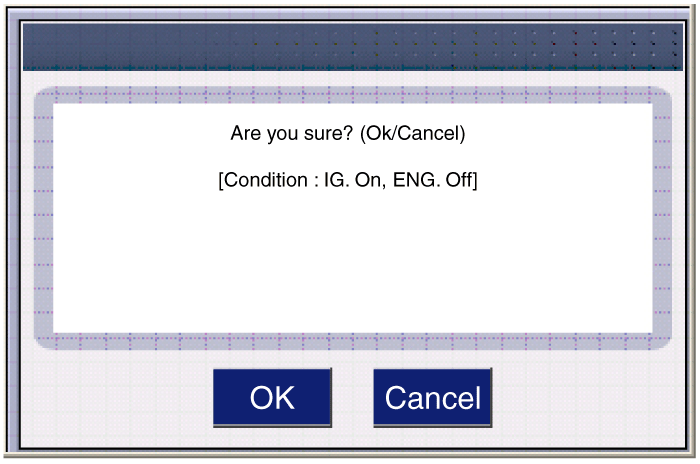

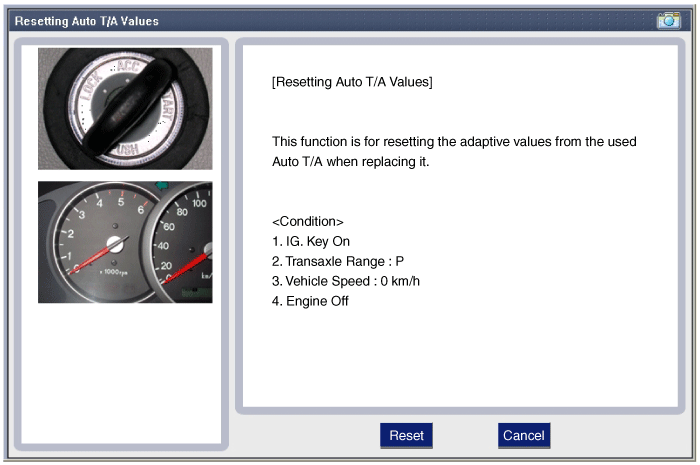

When replacing the automatic transaxle, reset the automatic transaxle's values by using the GDS.

•
Perform TCM learning after replacing the transaxle to prevent slow transaxle response, jerky acceleration and jerky startup.
(Refer to Automatic Transaxle Control System - "Repair procedures")
Removal
1. Remove the engine cover. (Refer to Engine Mechanical System - "Engine cover") 2. Remove the air cleaner assembly and air du ...
