Kia Sorento: Front Cross Member - Body Dimensions - Body (Interior and Exterior) - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Front Cross Member

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Cross Member

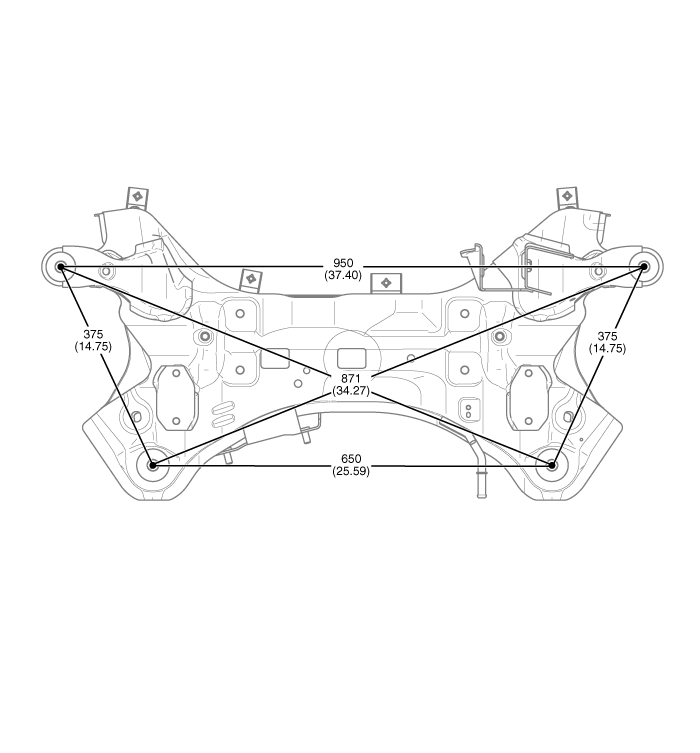

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Under Body (4WD)
Projected Dimensions * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Actual-Measurement Dimensions ...

Rear Cross Member
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...
