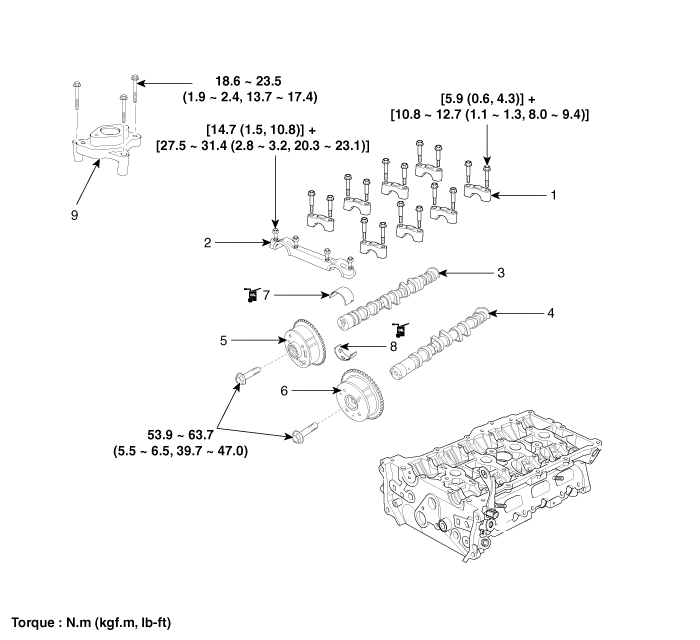

1. Camshaft bearing cap
2. Camshaft front bearing cap
3. Exhaust camshaft
4. Intake camshaft
5. Exhaust CVVT assembly
6. Intake CVVT assembly
7. Exhaust camshaft upper bearing
8. Intake camshaft lower bearing
9. Fuel pump bracket

Cylinder Head Cover Installation
1. Install cylinder head cover. (1) The hardened liquid gasket sealant located on the upper area between timing chain cover and cyli ...

CVVT & Camshaft Description
Continuous Variable Valve Timing (CVVT) system advances or retards the valve timing of the intake and exhaust valve in accordance with the ECM control signal which is calculated by the engine ...
