Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Automatic Transaxle System / Hydraulic System / Component Location

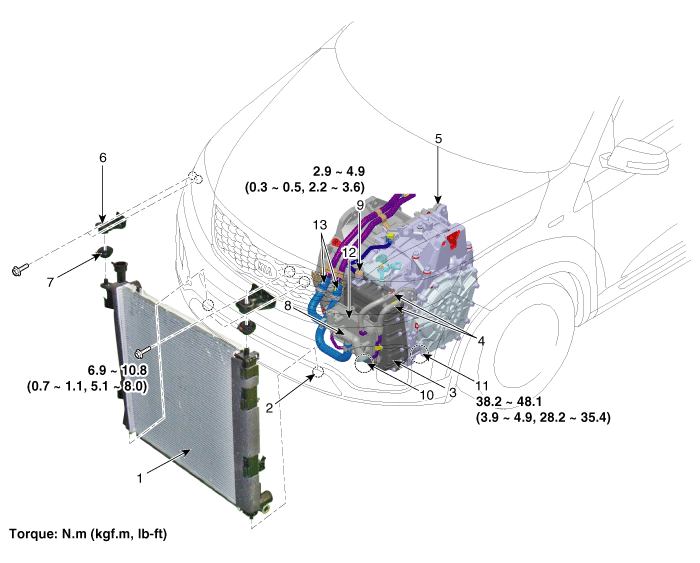

| 1. Radiator(Automatic transaxle oil cooler) 2. Mounting insulator 3. Valve body cover 4. ATF hose&pipe 5. Automatic transaxle 6. Radiator(Automatic transaxle oil cooler) upper mounting bracket 7. Upper mounting insulator |
8. Bypass valve 9. ATF injection hole(eyebolt) 10. Oil level plug 11. Oil drain plug 12. ATF Warmar 13. Coolant hose&pipe |

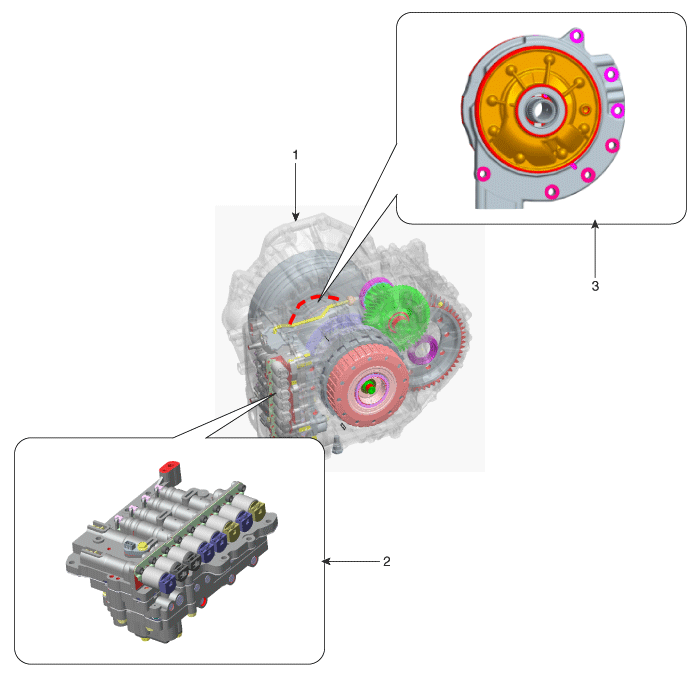

| 1. Automatic transaxle 2. Valve body assembly 3. Oil pump assembly |
Description
The hydraulic system consists of oil, an oil filter, an oil pump, and
a valve body (valves and solenoid valves).
The oil pump is powered by the engine. ATF passes through the oil filter
...
Oil Pump Description
The oil pump is built-in as a single unit with the 26Brake chamber. Rotation
of the pump builds the hydraulic pressure needed for the lubrication of the
various parts of the transaxle and ope ...
