Kia Sorento: ATF Warmer Component Location - Hydraulic System - Automatic Transaxle System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: ATF Warmer Component Location

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Automatic Transaxle System / Hydraulic System / ATF Warmer Component Location

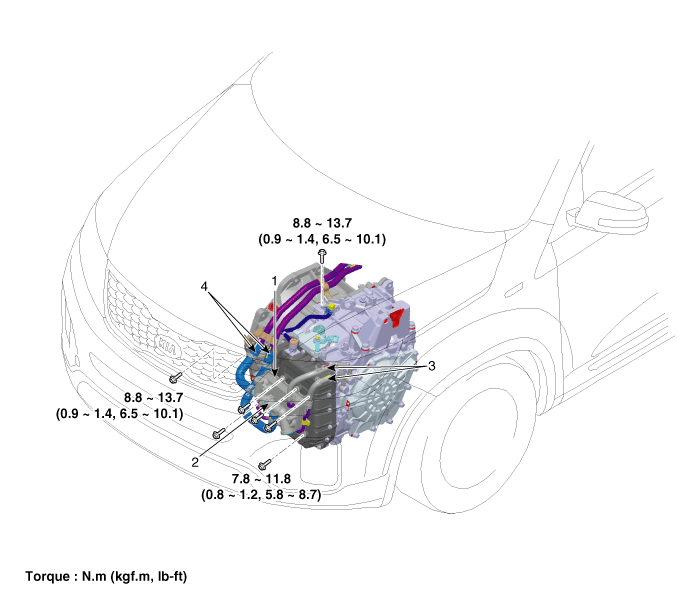

1. ATF Warmar
2. Bypass valve
3. ATF hose & pipe
4. Coolant hose & pipe

ATF Warmer Description
The ATF warmer is mounted on the valve body cover to reduce oil viscosity friction by increasing oil temperature under cold condition, which in turn improves fuel efficiency. It is serial mou ...

ATF Warmer Component
1. ATF Warmar 2. Bypass valve 3. ATF hose & pipe 4. Coolant hose & pipe ...
