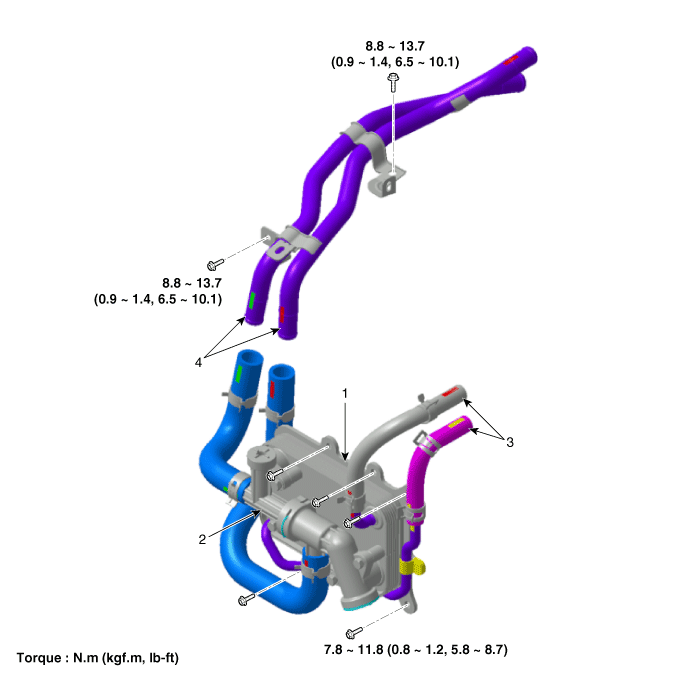

1. ATF Warmar
2. Bypass valve
3. ATF hose & pipe
4. Coolant hose & pipe

ATF Warmer Component Location
1. ATF Warmar 2. Bypass valve 3. ATF hose & pipe 4. Coolant hose & pipe ...

ATF Warmer Removal
1. Drain the coolant. (Refer to Engine Mechanical System - "Coolant") 2. Remove the air cleaner assembly and air duct. ...
