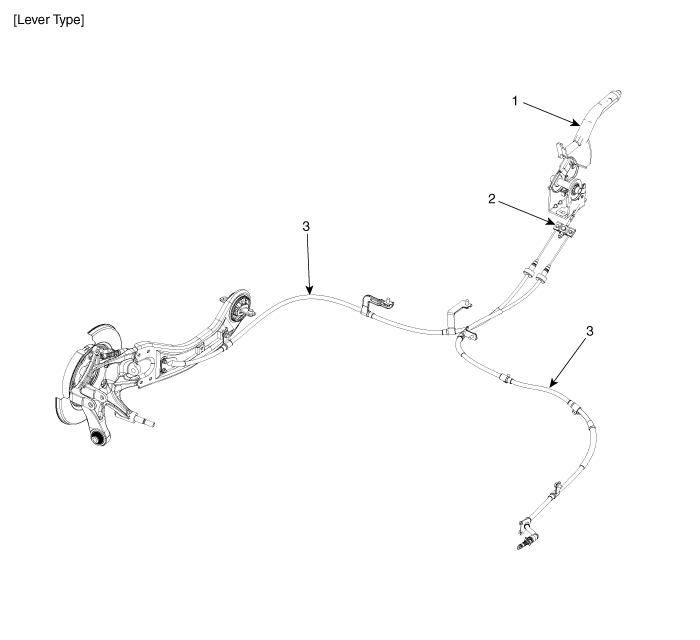

Components (1)

1. Parking brake pedal
2. Equalizer assembly
3. Parking brake cable

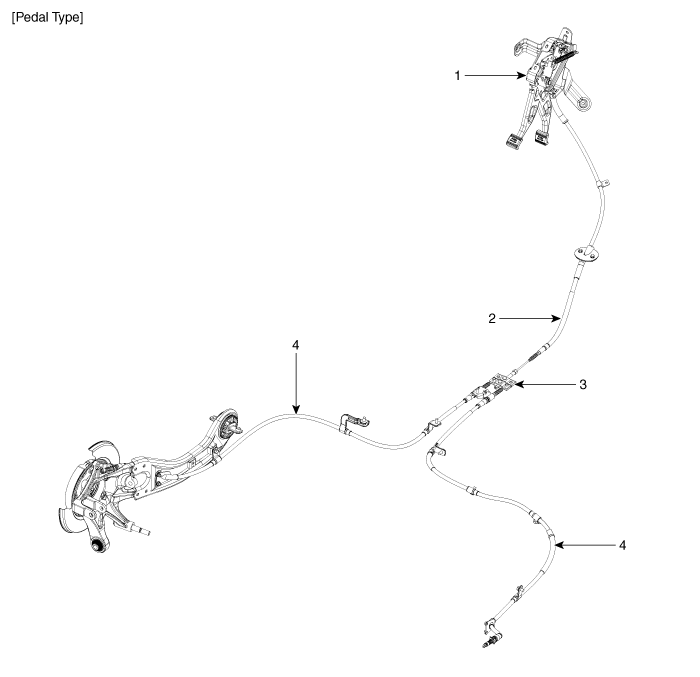

Components (2)

1. Parking brake pedal assembly
2. Front parking brake cable
3. Equalizer assembly
4. Rear parking brake cable

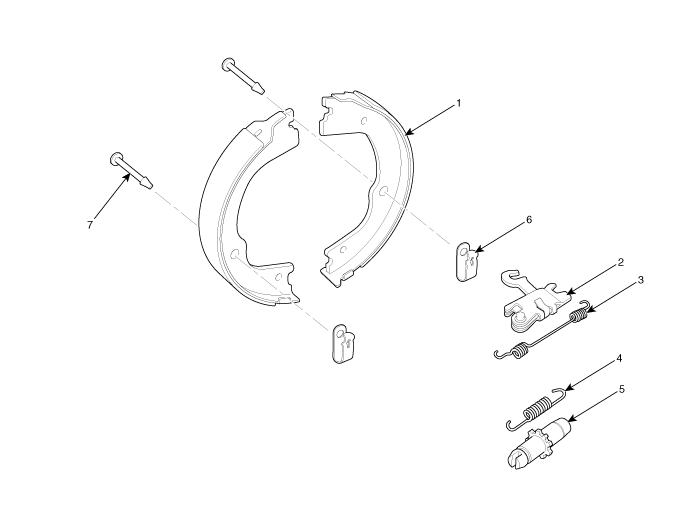

Components (3)

1. Brake shoe
2. Operating lever
3. Upper spring
4. Lower spring

5. Adjuster
6. Shoe hold down spring
7. Shoe hold down pin

Parking Brake System
...

Parking Brake Assembly Removal
Parking Brake Shoe 1. Raise the vehicle, and make sure it is securely supported. 2. Remove the rear tire and wheel. 3. ...
