Kia Sorento: Water pump Components - Cooling System - Engine Mechanical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Water pump Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Mechanical System / Cooling System / Water pump Components

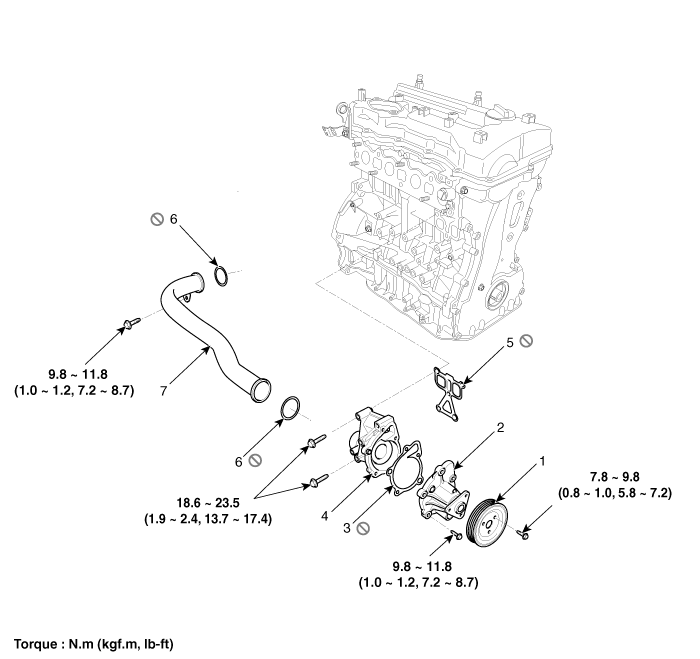

1. Water pump pulley
2. Water pump
3. Water pump gasket
4. Water pump housing
5. Water pump housing gasket
6. O-ring
7. Water inlet pipe
