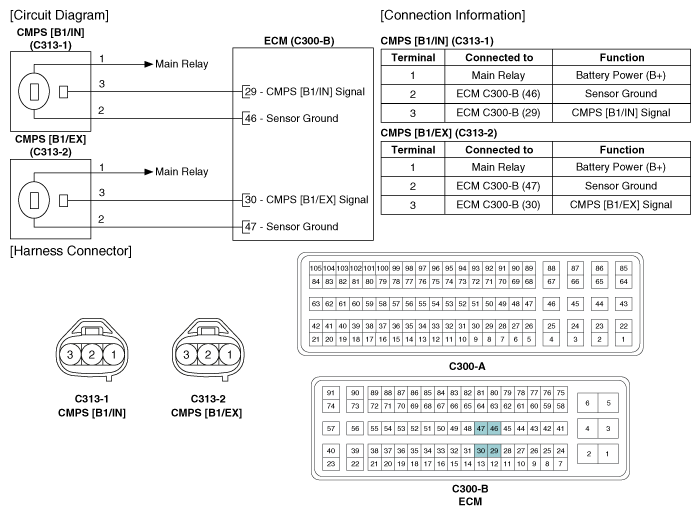

Kia Sorento: Circuit Diagram - Camshaft Position Sensor (CMPS) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Camshaft Position Sensor (CMPS) / Circuit Diagram

Wave Form
...

Inspection
1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to “Wave Form” ...
