Kia Sorento: Side Body B - Body Dimensions - Body (Interior and Exterior) - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Side Body B

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Body (Interior and Exterior) / Body Dimensions / Side Body B

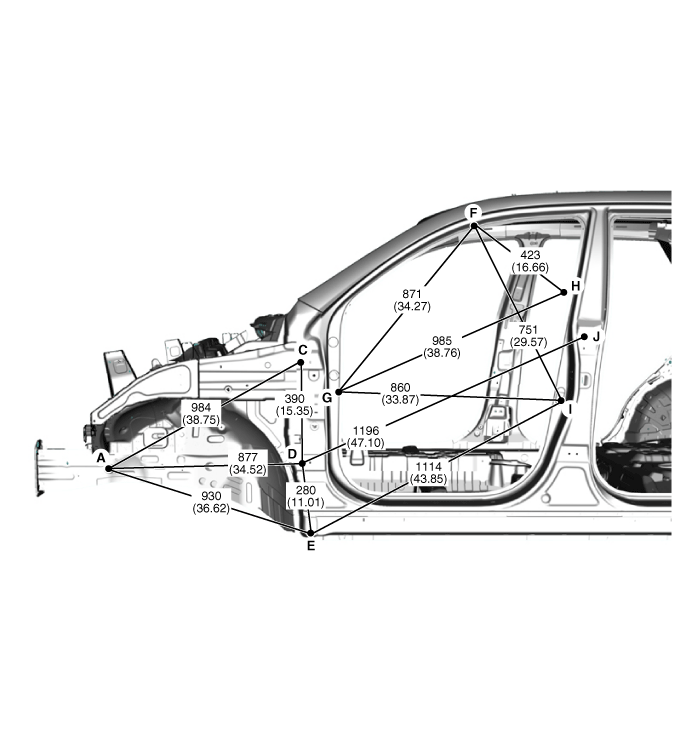

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Side Body A
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...

Side Body C
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] Front side m ...
