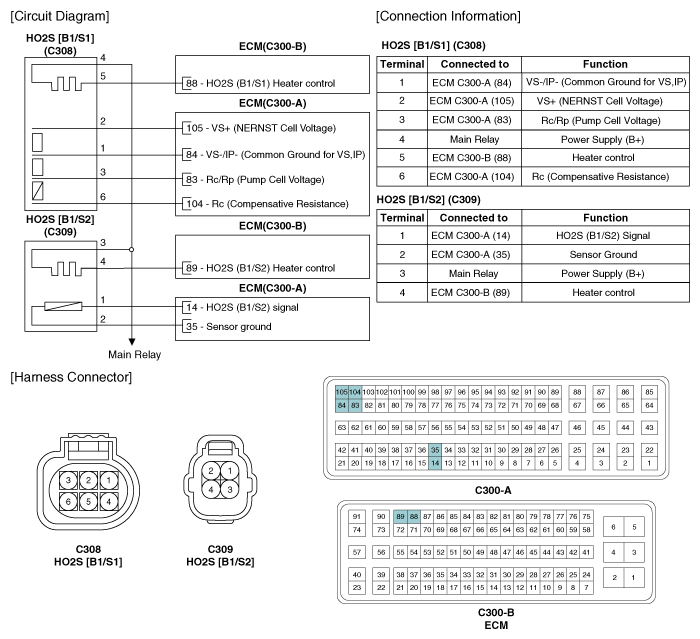

Kia Sorento: Circuit Diagram - Heated Oxygen Sensor (HO2S) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) / Circuit Diagram

Specification
HO2S [Bank 1/Sensor 1] Item Specification Heater Resistance (Ω) 2.5 ~ 4.0 [20°C(68°F)] HO2S [Bank 1/Sensor 2] A/F Ratio (λ) ...

Inspection
1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance between the HO2S termi ...
