Kia Sorento: Oil Pump Component Location - Hydraulic System - Automatic Transaxle System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Oil Pump Component Location

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Automatic Transaxle System / Hydraulic System / Oil Pump Component Location

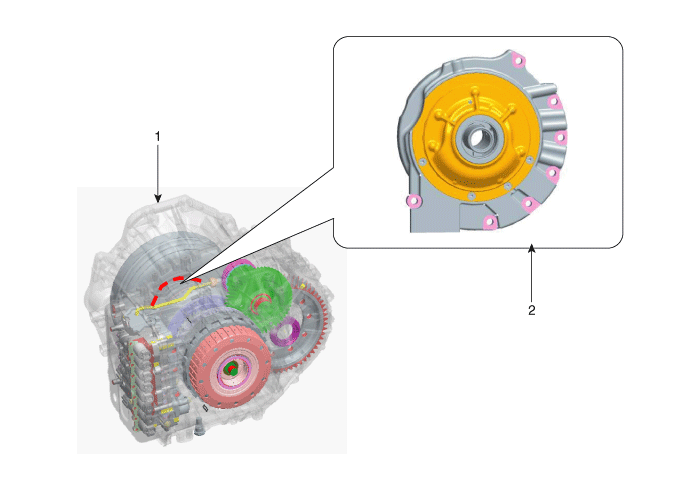

1. Automatic transaxle
2. Oil pump assembly


Oil Pump Description
The oil pump is built-in as a single unit with the 26Brake chamber. Rotation of the pump builds the hydraulic pressure needed for the lubrication of the various parts of the transaxle and ope ...

Oil Pump Component
1. Reaction shaft support assembly 2. Oil pump housing 3. Driven gear 4. Drive gear 5. Oil seal 6. Bush-Housing 7. Reaction shaft 8. Bush- Reaction shaft 9. Sl ...
