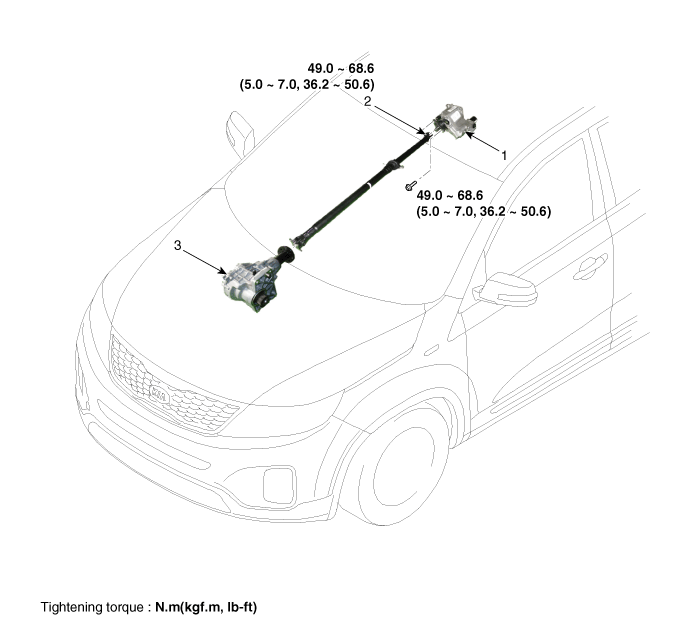

1. Coupling assembly
2. Propeller shaft
3. Transfer assembly

Coupling Assembly
...

Direct Electro Hydraulic Actuator Coupling Components
1. Coupling assembly 2. Input shaft 3. Pressure sensor 4. Extension wiring 5. Oil hydraulic Motor(Actuator) ...
