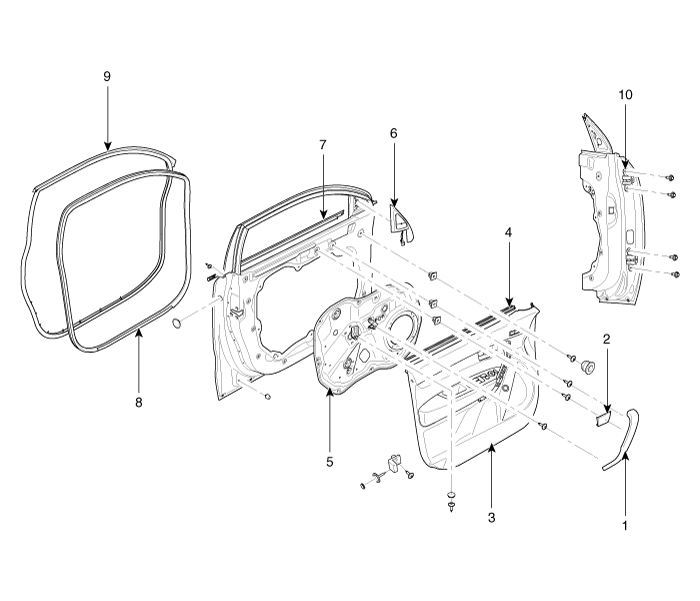

1. Door grip handle cover
2. Door inside handle cap
3. Door trim
4. Door belt inner weatherstrip
5. Door module
6. Quadrant inner cover
7. Door belt weatherstrip
8. Door side body weatherstrip
9. Door side weatherstrip
10. Door hinge

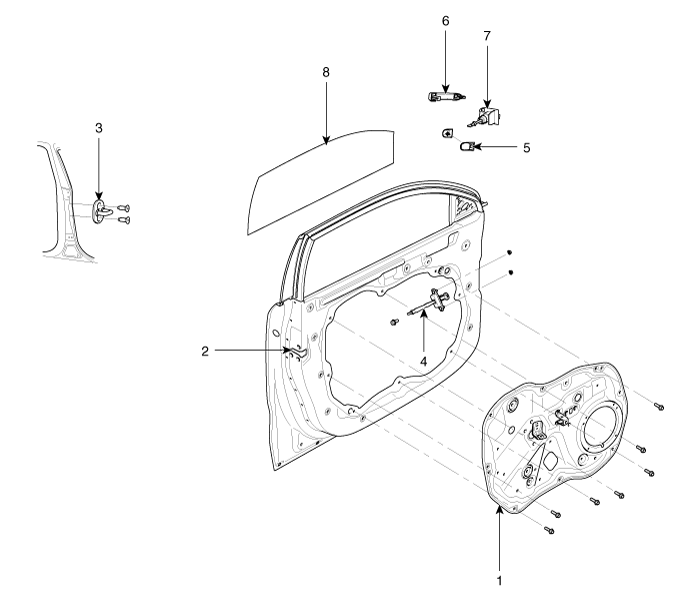

1. Door module
2. Door latch
3. Door striker
4. Door checker
5. Outside handle pad
6. Outside
7. Outside handle cover
8. Door glass

Tail Gate Adjustment
1. After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left. 2. Adjust the tailg ...

Front Door Replacement
Front Door Trim Replacement    • When prying with a flat-tipped screwdriver, wrap it with ...
