1. |

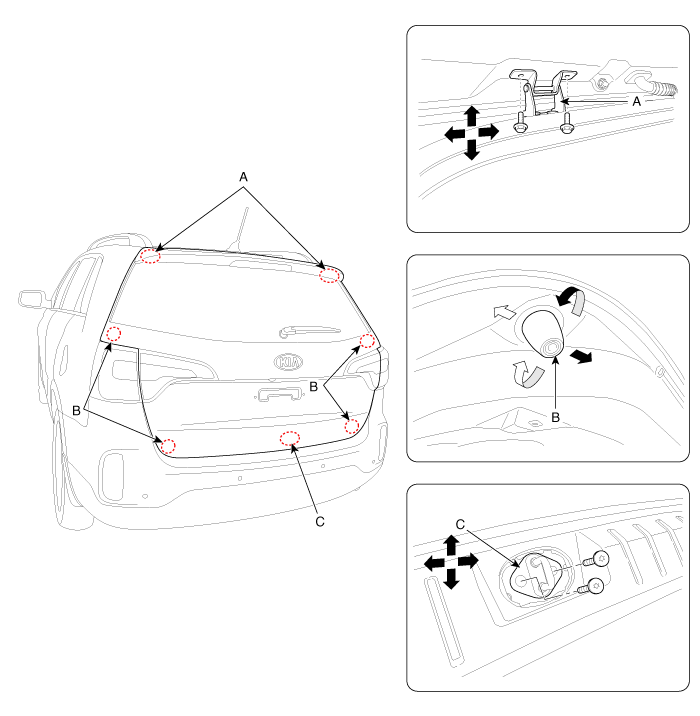

After loosening the tailgate hinge (A) mounting bolt, adjust the
tailgate by moving it up or down, or right or left.
|
2. |
Adjust the tailgate height by turning the tailgate overslam bumpers
(B).
|
3. |
After loosening the tailgate striker (C) mounting bolts, adjust
the tailgate striker by moving it up or down, or right or left.
|
Heater & A/C Control Unit (Manual) Component
Connector Pin Function
Connector
Pin No
Function
Connector
Pin No
Function
A
1
Ground
B
18
IG ...
Battery Sensor Installation
1.
Install in the reverse order of removal.
Battery sensor cable installation
bolt:
10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb ...
ECM Terminal And Input/Output signal
ECM Terminal Function
Connector [C300-A]
Pin
No.
Description
Connected to
1
Ignition Coil (Cylinder #2) control output
[NON-smart ke ...
