Kia Sorento: Front Body B - Body Dimensions - Body (Interior and Exterior) - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Front Body B

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body B

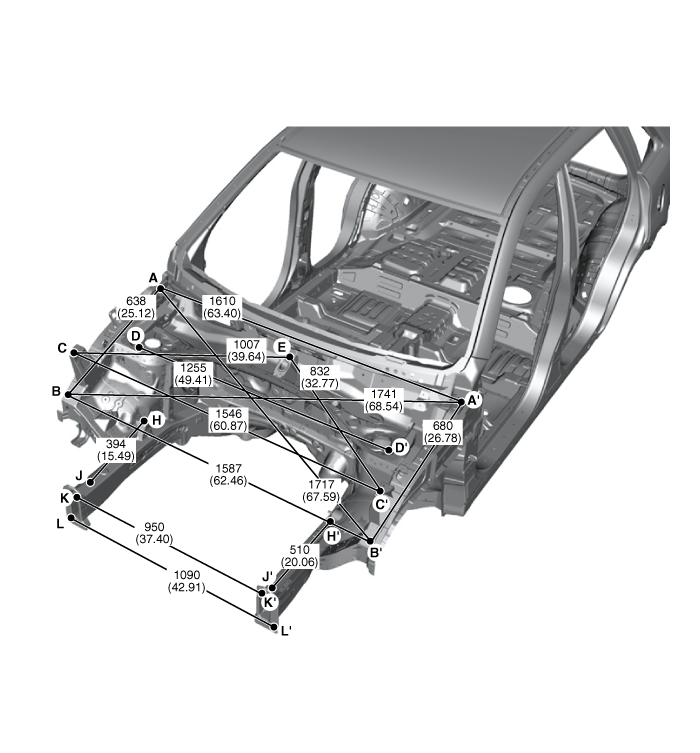

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front Body A
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...

Front Body C
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...
