Kia Sorento: Front Body C - Body Dimensions - Body (Interior and Exterior) - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Front Body C

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Body (Interior and Exterior) / Body Dimensions / Front Body C

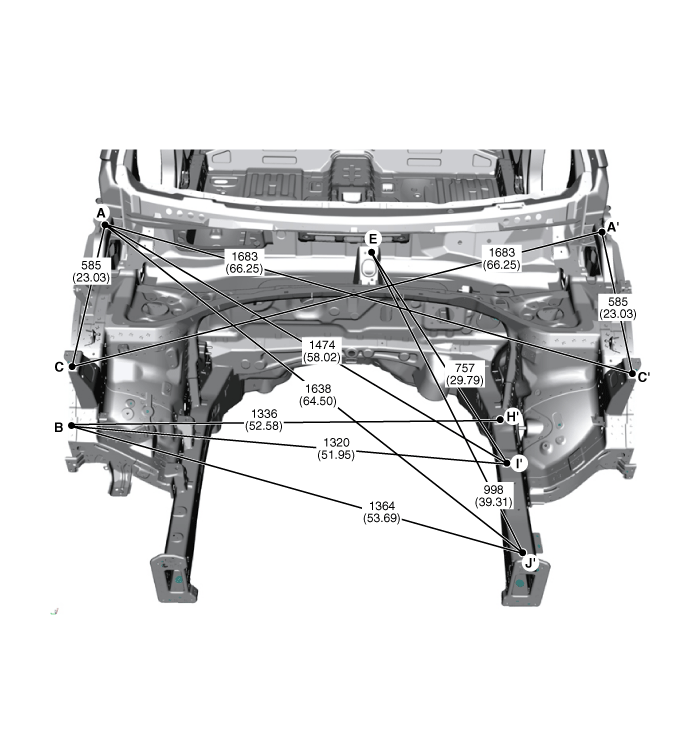

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Front Body B
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...

Front Body D
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...
