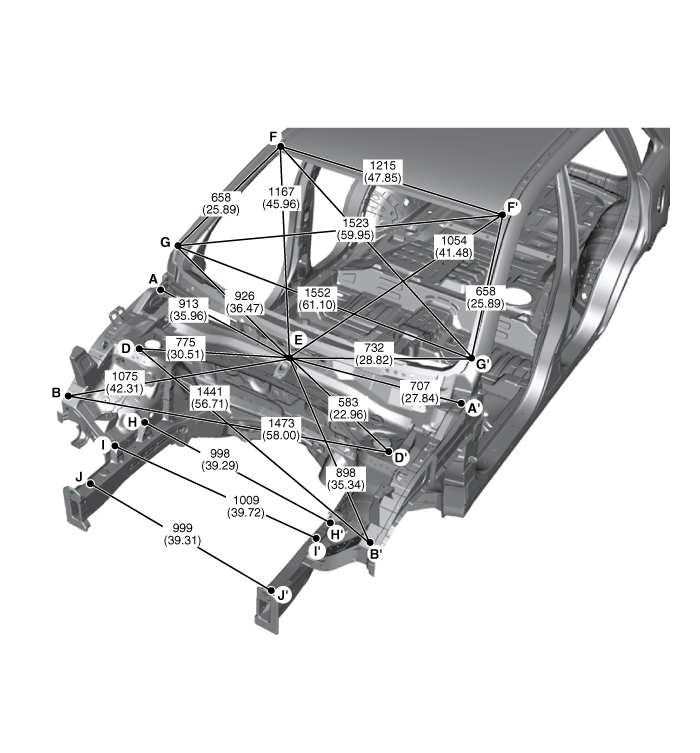

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]

Measurement Method
Projected Dimensions 1. These are the dimensions measured when the measurement points are projected into the reference plane, and are the reference dimensions ...

Front Body B
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] ...
