Kia Sorento: Brake Pedal Components - Brake System - Brake System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Brake Pedal Components

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Brake System / Brake System / Brake Pedal Components

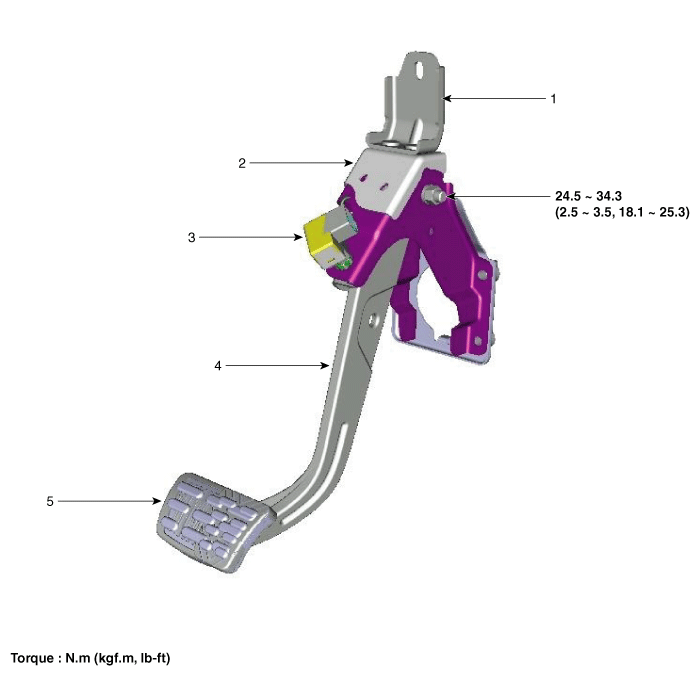

1. Cowl bracket
2. Brake pedal member assembly
3. Stop lamp switch
4. Brake pedal arm
5. Brake pedal pad

Brake Line Installation
1. Installation is the reverse of removal.    Use a new washer (A) whenever ...

Brake Pedal Removal
1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the crash pad lower panel and reinforce panel. ...
