Kia Sorento: Air Cleaner Components - Intake And Exhaust System - Engine Mechanical System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Air Cleaner Components

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner Components

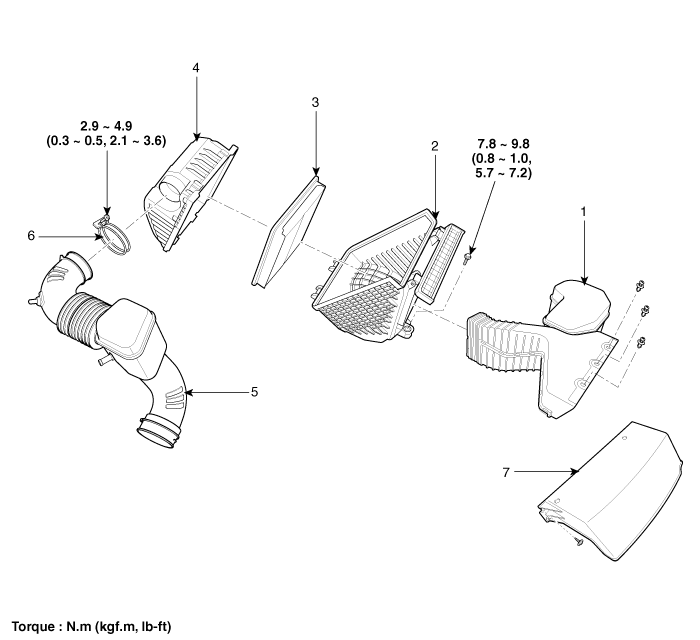

1. Air duct
2. Air cleaner body
3. Air cleaner element
4. Air cleaner cover
5. Air intake hose
6. Clamp
7. Air intake shield
