Kia Sorento: Heated Steering wheel Description - Steering wheel - Steering System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Heated Steering wheel Description

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Steering System / Steering wheel / Heated Steering wheel Description

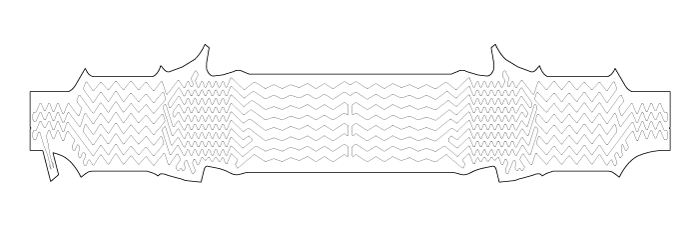

Heated pads to grip the steering grip makes the fever.
1.
Heated control unit

2.
Heated pad

Specifications
Item
Specification
Voltage
13.5 V
Heated pad resistance
1.4 ~ 1.8 Ω  ± 10%
NTC resistance
10.0 kΩ  ± 10% (25°C)

Disassembly
1. Remove the steering wheel cover (B) after loosening the screw (A-6ea). 2. Disconnect the streeing wheel remote control s ...

Heated Steering wheel System Circuit Diagram
Terminal Function Housing Pin Function Wire color Pad A GND Back B HEATER Yellow C ...
