Kia Sorento: Roof Trim Components - Exterior - Body (Interior and Exterior) - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Roof Trim Components

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Body (Interior and Exterior) / Exterior / Roof Trim Components

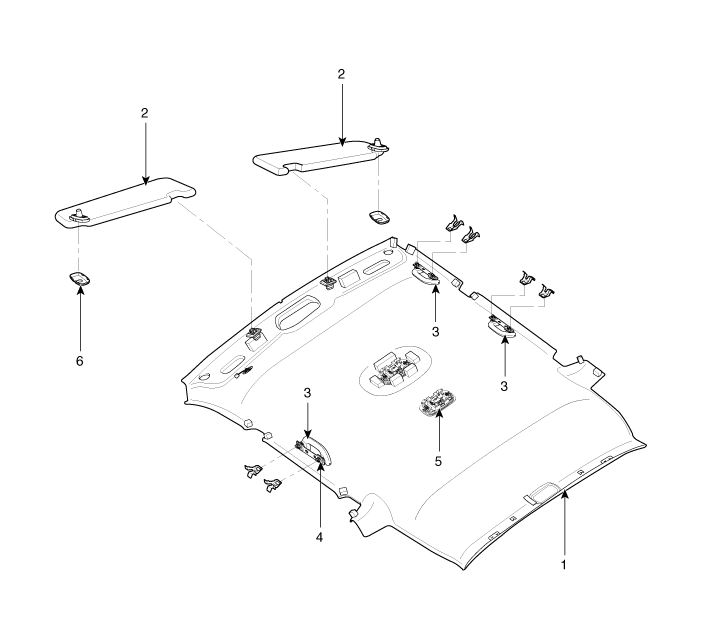

1. Headliner
2. Sunvisor
3. Assist handle
4. Assist handle mounting bracket
5. Room ramp
6. Sunvisor mounting cover
