Kia Sorento: Pressure Sensor Inspection - Coupling Assembly - 4 Wheel Drive (4WD) System - Kia Sorento XM 2011-2025 Service ManualKia Sorento: Pressure Sensor Inspection

Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor Inspection


If you have trouble code related to the pressure sensor check pressure sensor according to the inspection process.
Pressure Sensor Inspection Procedure

Measure the resistance of pressure sensor
1.
Turn ignition switch OFF.
2.
Disconnect the pressure sensor connector.
3.
Measure resistance between sensor terminal and terminal.
4.
Check the measured resistance. (Refer to table)
Terminal
Resistance
PIN 2 – PIN 3
2.755 ~ 4.133 kΩ
PIN 1 – PIN 3
1.892 ~ 2.838 kΩ
PIN 1 – PIN 2
1.714 ~ 2.838 kΩ

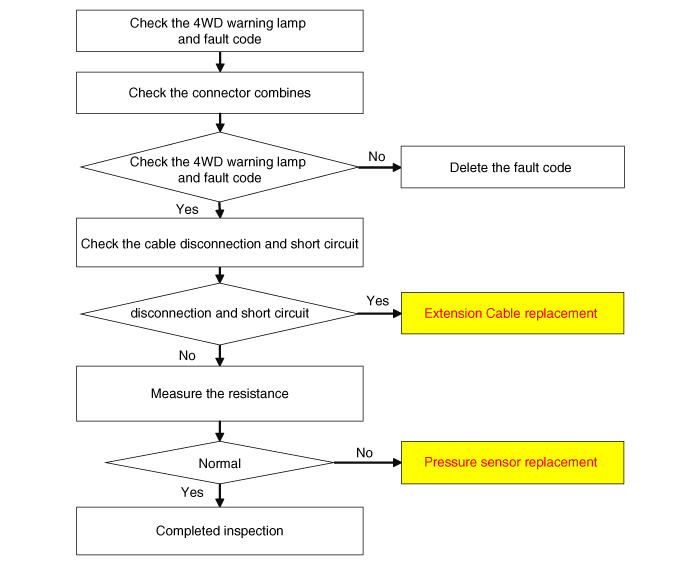

Pressure Sensor Circuit Diagram
...

Pressure Sensor Removal
1. Remove the coupling assembly. (Refer to Coupling Assembly - "Direct Electro Hydraulic Actuator Coupling") 2. Remove th ...
