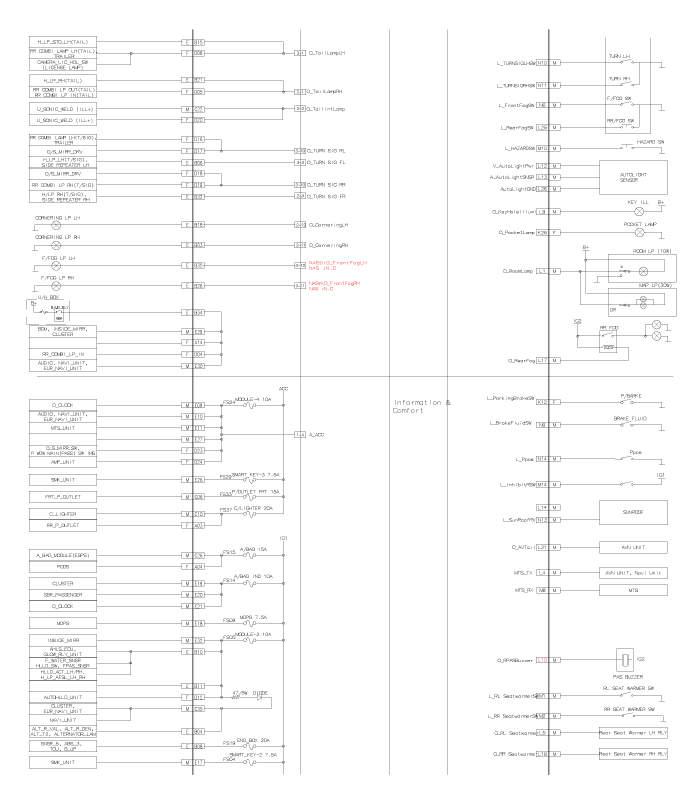

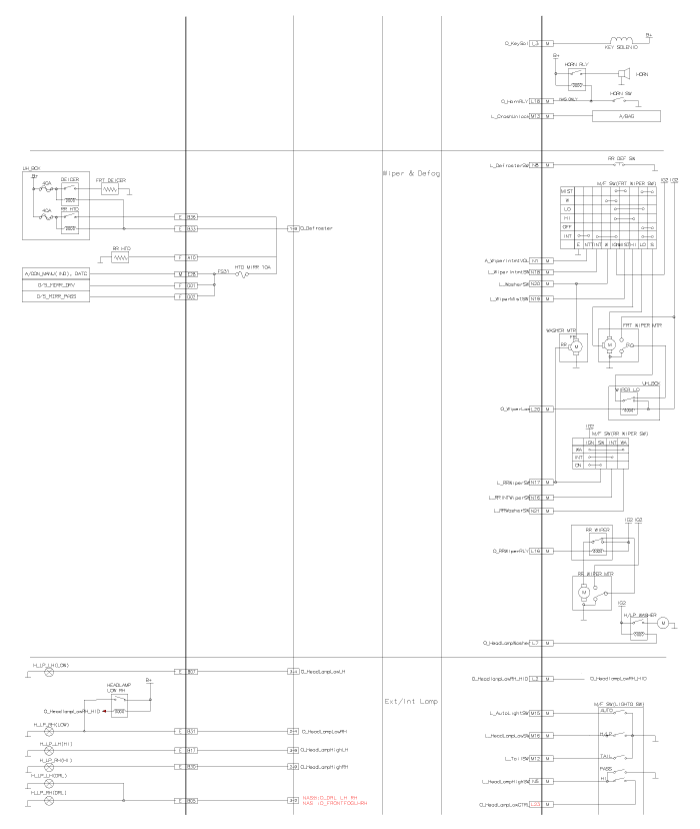

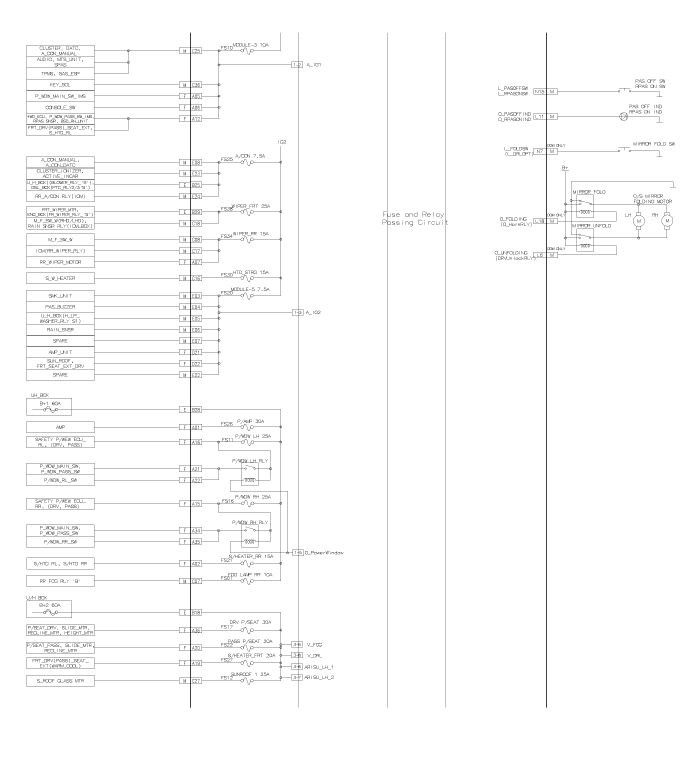

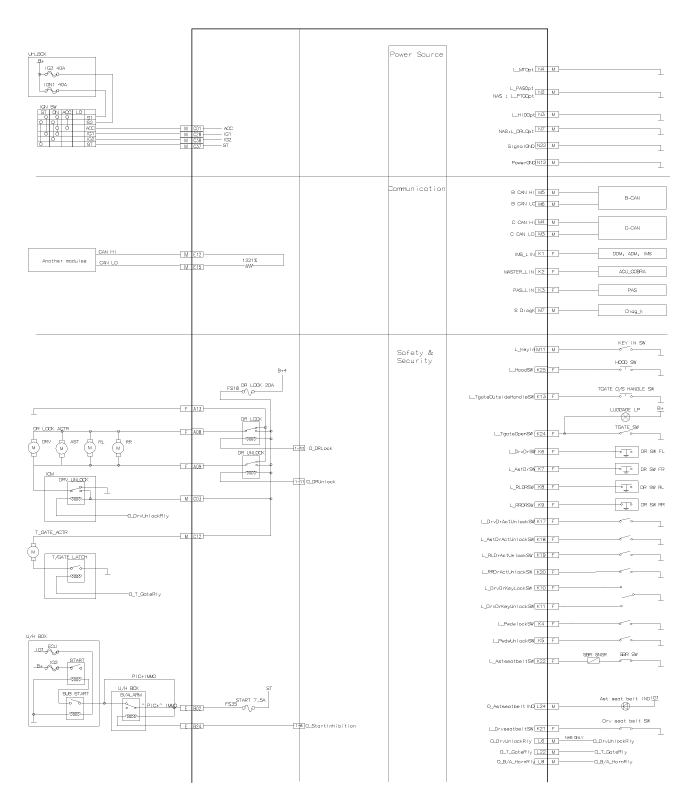

Kia Sorento: IPM Circuit Diagram - BCM (Body Control Module) - Body Electrical System - Kia Sorento XM 2011-2026 Service ManualKia Sorento: IPM Circuit Diagram

Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Body Electrical System / BCM (Body Control Module) / IPM Circuit Diagram

IPM Components
Outer Connector (L / M / N / K) Connector Pin No. Description Active Remark K 1 IMS LIN     ...

IPM Description
IPM (Intelligent intergrated Platform Module) receives various input switch signals ling time and alarm fuctions for fr washer interlocking wiper, fr intermittent wiper, mist wiper, rea ...
