The front seat can be adjusted by using the control switches located on the outside of the seat cushion.
Before driving, adjust the seat to the proper position so you can easily control the steering wheel, pedals and switches on the instrument panel.
WARNING
The power seat is operable with the ignition OFF. Therefore, children should never be left unattended in the vehicle.
CAUTION

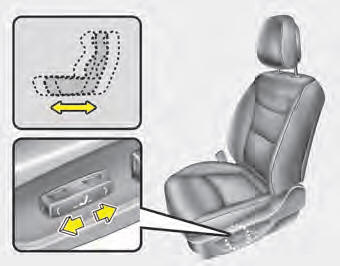

Forward and backward
Push the control switch forward or backward to move the seat to the desired position. Release the switch once the seat reaches the desired position.

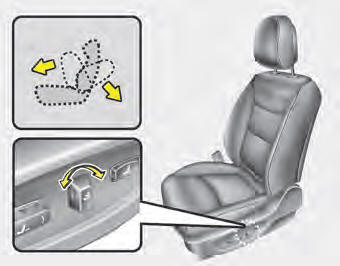

Seatback angle
Push the control switch forward or backward to move the seatback to the desired angle. Release the switch once the seat reaches the desired position.

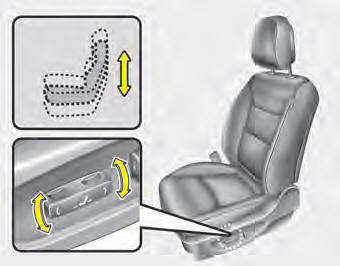

Seat height (for driver’s seat)
Pull the front portion of the control switch up to raise or press down to lower the front part of the seat cushion.
Pull the rear portion of the control switch up to raise or press down to lower the rear part of the seat cushion. Release the switch once the seat reaches the desired position.

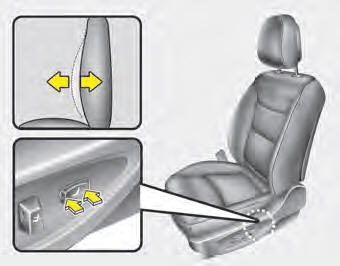

Lumbar support (for driver’s seat)
The lumbar support can be adjusted by pressing the button.
