Kia Sorento: Exterior Overview

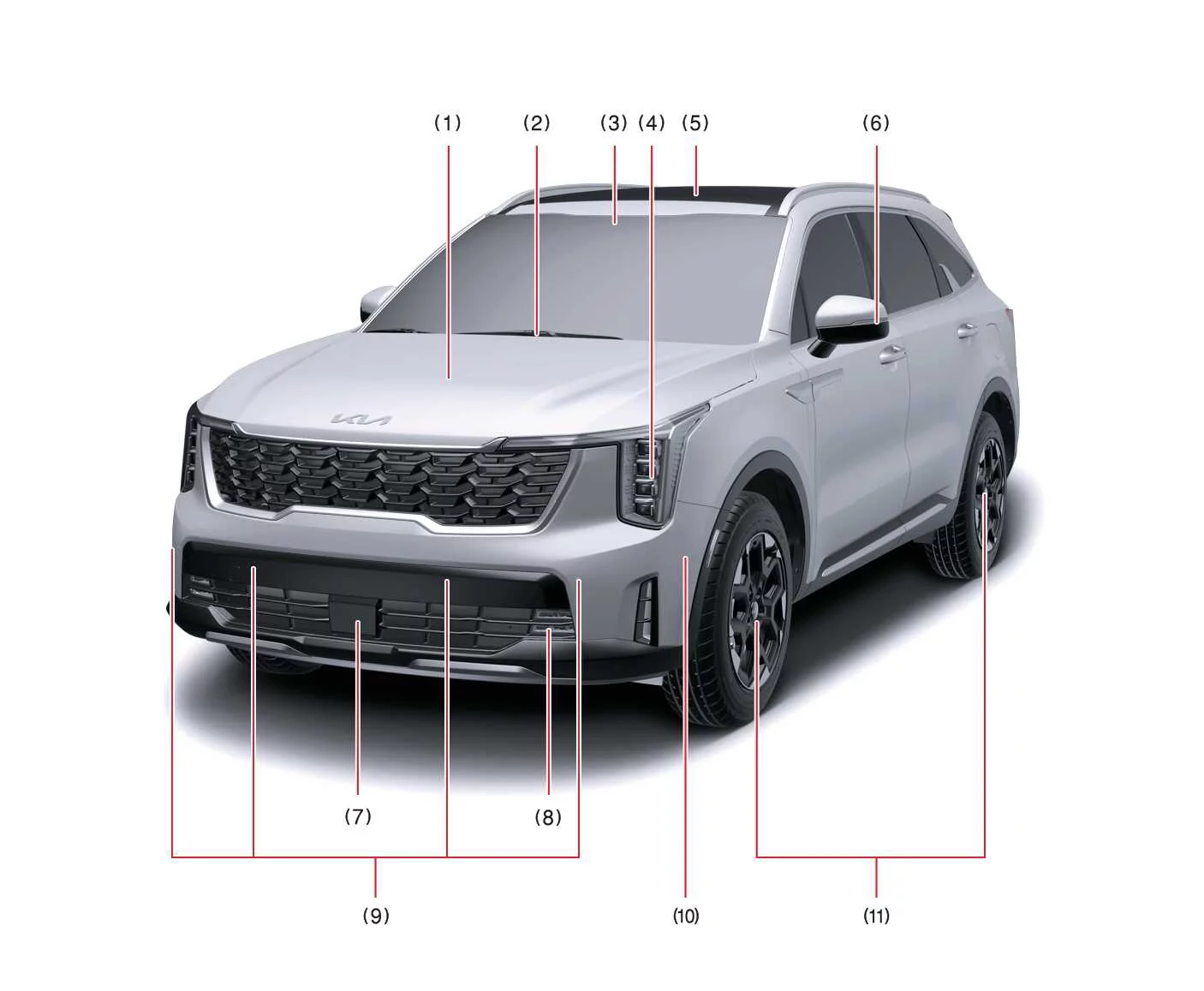

Figure 1. Front view diagram showing external components of the Kia Sorento.

The actual shape, trim details, and feature locations of your Kia Sorento may vary slightly from the schematic illustration above depending on model year and options.

1. Engine Hood - Hood operation and latch release location

2. Front windshield wiper blades - Wipers and washers, Wiper blade maintenance and replacement

3. Front windshield view camera - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion technology)

4. Headlamp assembly - Exterior lighting operation, Light bulb position guide (Front)

5. Panoramic sunroof glass panel - Panoramic sunroof controls and maintenance

6. Outside rearview mirror assembly - Outside rearview mirror adjustments and folding options

7. Front bumper radar unit - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion detection)

8. Front fog lamp assembly - Light bulb position and replacement (Front)

9. Front parking ultrasonic sensors - Forward Collision-Avoidance Assist (FCA) (Sensor Fusion monitoring)

10. Front side ultrasonic sensors - Forward Collision-Avoidance Assist (FCA) (Side sensor coverage)

11. Wheel and tire assembly - Removing and storing the spare tire, Tires and wheels care guide

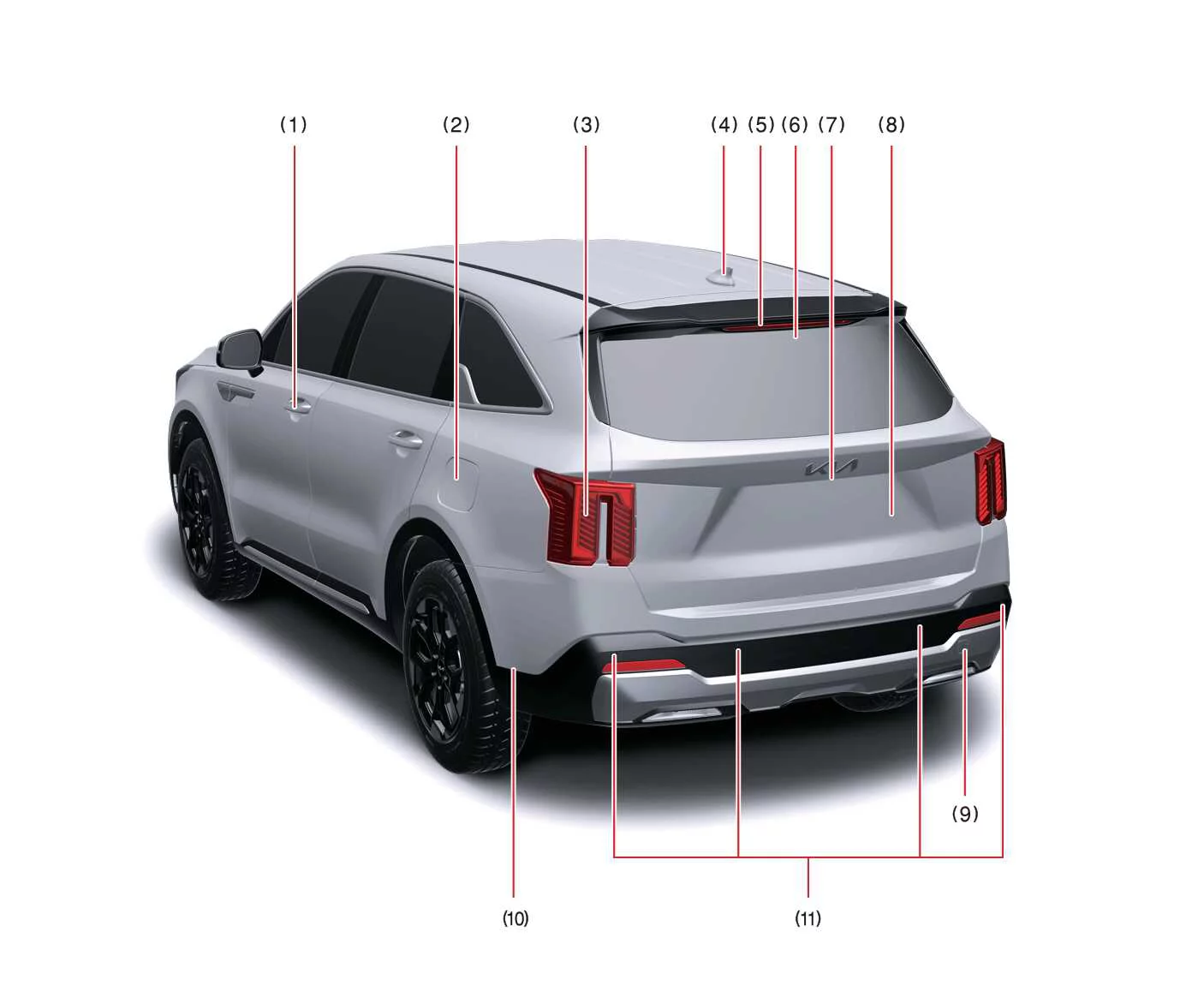

Figure 2. Rear view diagram showing external tailgate and lighting components of the Kia Sorento.

The actual shape, trim details, and feature locations of your Kia Sorento may vary slightly from the schematic illustration above depending on model year and options.

1. Side passenger doors - Central door locks and child safety features

2. Fuel filler door - Fuel filler door release and cap operation

3. Rear combination lamp assembly - Replacing Rear combination lamp (Stop lamp/Tail lamp/Rear turn signal lamp) (Bulb type), Replacing the reversing lamp (Bulb type)

4. Roof antenna unit - Shark-fin roof antenna

5. High-mounted third stop lamp - Light bulb position guide (Rear upper spoiler)

6. Rear windshield wiper - Wipers and washers, Rear wiper blade replacement

7. Wide-angle rear view camera - Rear View Monitor (RVM) system guidance

8. Power liftgate - Liftgate operation, Smart liftgate with auto open feature

9. Backup reversing lamp - Light bulb position guide (Rear bumper)

10. Rear side ultrasonic sensors - Forward/Reverse Parking Distance Warning (PDW), Reverse Parking Collision-Avoidance Assist (PCA)

11. Rear bumper ultrasonic sensors - Forward/Reverse Parking Distance Warning (PDW), Reverse Parking Collision-Avoidance Assist (PCA)
