Kia Sorento: Exhaust Manifold Components - Intake And Exhaust System - Engine Mechanical System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: Exhaust Manifold Components

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Engine Mechanical System / Intake And Exhaust System / Exhaust Manifold Components

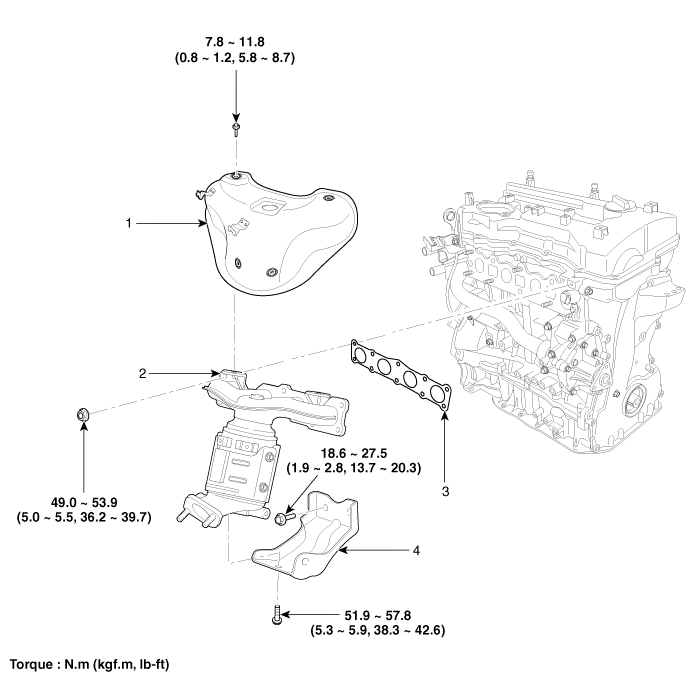

1. Heat protector
2. Exhaust manifold
3. Exhaust manifold gasket
4. Exhaust manifold stay
