Kia Sorento: Driver’s and passenger’s front air bag

Your Kia Sorento is equipped with an advanced supplemental restraint airbag system and emergency-locking lap/shoulder belts at both the driver and front passenger seating positions, ensuring robust multi-layered protection on every journey.

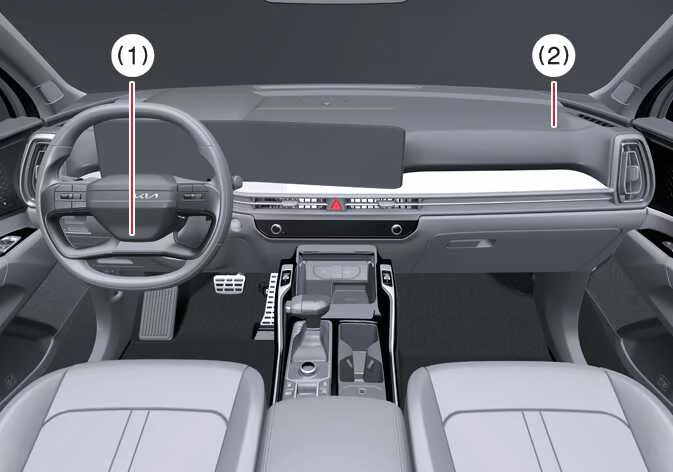

Driver’s front air bag / Passenger’s front air bag
	(1) Driver’s front air bag (2) Passenger’s front air bag

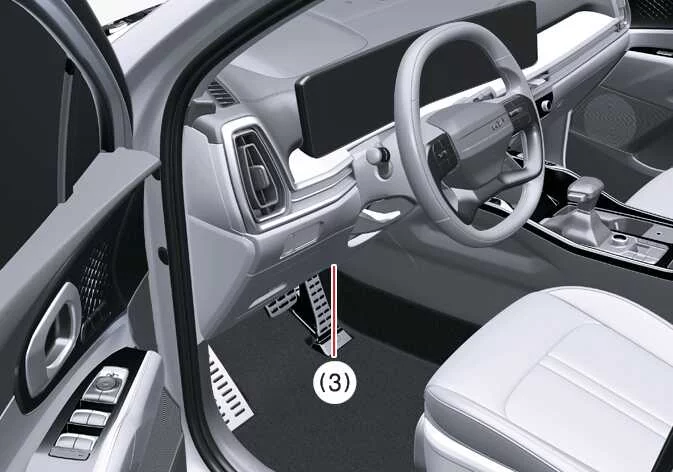

Driver’s knee air bag
	(3) Driver’s knee air bag

The indicator stamps display the prominent words AIR BAG directly on the central steering wheel pad cover, on the driver’s lower knee bolster panel situated underneath the steering column, and across the passenger’s front dashboard trim pad positioned directly above the glove box compartment.

The integrated Supplemental Restraint System (SRS) incorporates high-output inflators and airbag cushions safely concealed beneath protective pad covers located in the center of the steering wheel hub, within the lower knee bolster assembly below the steering column, and inside the front passenger panel above the glove box.

The SRS is engineered to provide the driver and front passenger of the Kia Sorento with enhanced safeguarding capabilities that go beyond what seat belts alone can achieve during sufficiently severe frontal collisions. The network relies on smart sensors to monitor impact severity continuously alongside real-time data regarding seat belt buckle status.

A dedicated seat belt buckle sensor determines instantly whether the front passenger’s seat belt is securely latched. This telemetry feeds directly into the safety computer, enabling precise modulation of SRS deployment timing based on actual occupant restraint usage and collision intensity.

The advanced multi-stage SRS regulates inflation intensity in two distinct levels. The first stage deploys with moderate pressure for medium-severity impacts, while the second stage unleashes full inflation capacity during high-severity crashes.

The centralized SRS Control Module (SRSCM) governs airbag deployment choreography by evaluating crash deceleration forces and occupant belt utilization. Neglecting to wear seat belts correctly significantly elevates the risk and severity of personal injury during an accident.

Your Kia Sorento features an integrated Occupant Detection System (ODS) built directly into the front passenger seat structure. The ODS tracks seat occupancy and will automatically deactivate the front passenger airbag under specific low-weight or empty-seat parameters. For more comprehensive details, refer to the Occupant Detection System section.

Government regulations mandate that manufacturers supply a designated contact point regarding structural modifications for drivers with physical disabilities, as alterations can influence advanced airbag performance. That official contact is Kia’s toll-free Customer Assistance center at 1-800-333-4542 (U.S. only). However, Kia neither endorses nor assumes liability for unauthorized changes made to any vehicle component or structural part that impacts the advanced airbag architecture or ODS calibration.

Advanced airbags work in tandem with emergency pretensioner seat belts to deliver superior protection during frontal impacts. Front airbags are designed to remain dormant in minor collisions where standard seat belt tensioning provides adequate protection.

Front airbags will not deploy in side-impact collisions, rear-end collisions, or vehicle rollovers unless secondary deceleration forces satisfy frontal threshold requirements. Furthermore, front airbags remain inactive during low-speed frontal impacts that fall below the deployment threshold.

NOTE

Refer to the WARNING, CAUTION, and NOTE guidelines outlined in the general Precautions section.
