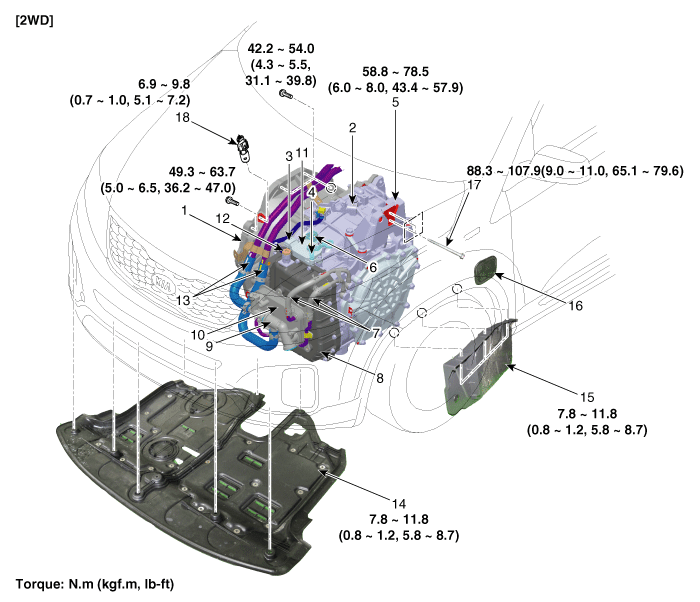

1. Automatic transaxle
2. Shift cable bracket
3. Inhibitor switch connector
4. Manual control lever
5. Automatic transaxle mounting support bracket
6. Solenoid valve connector
7. ATF hose&pipe
8. Valve body cover
9. Bypass valve
10. ATF Warmer
11. Inhibitor switch
12. ATF Injection hole(eyebolt)
13. Coolant hose&pipe assembly
14. Under cover
15. Side cover
16. Automatice transaxle mounting bracket cover
17. Automatice transaxle mounting bracket bolt
18. CKP Sensor

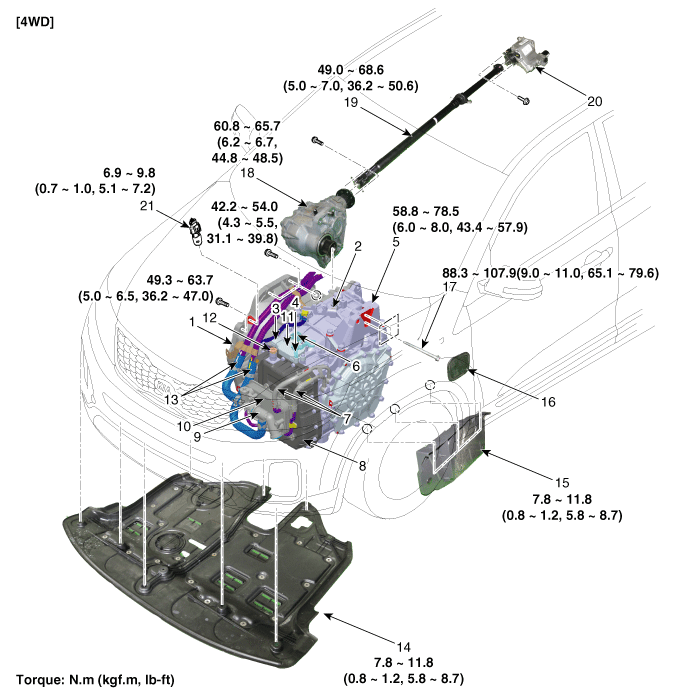

1. Automatic transaxle
2. Shift cable bracket
3. Inhibitor switch connector
4. Manual control lever
5. Automatic transaxle mounting support bracket
6. Solenoid valve connector
7. ATF hose&pipe
8. Valve body cover
9. Bypass valve
10. ATF Warmer
11. Inhibitor switch
12. ATF Injection hole(eyebolt)
13. Coolant hose&pipe assembly
14. Under cover
15. Side cover
16. Automatice transaxle mounting bracket cover
17. Automatice transaxle mounting bracket bolt
18. Transfer assembly
19. Propeller shaft
20. Coupling Assembly
21. CKP Sensor
