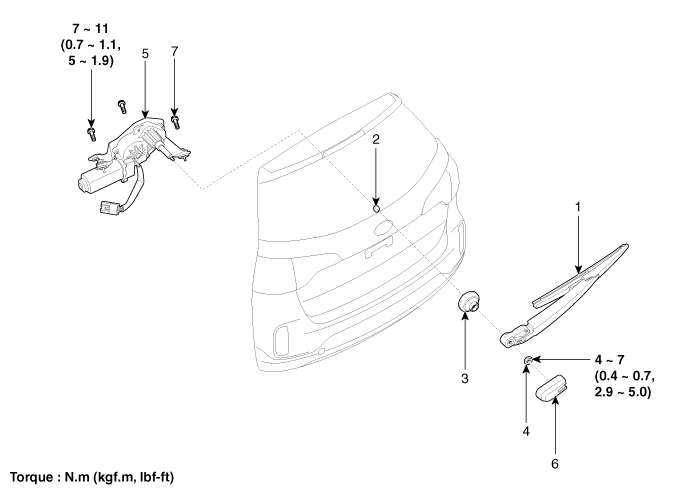

1. Rear wiper arm & blade
2. Tailgate glass hole
3. Grommet
4. Rear wiper arm nut

5. Rear wiper motor assembly
6. Head cap
7. Rear wiper motor bolt

Rear Wiper/Washer
...

Rear Wiper Motor Inspection
Rear Wiper Motor 1. Remove the 4P connector from the rear wiper motor. 2. Connect battery positive (+) and negative (-) cables to terminals ...
