Kia Sorento: Component Location
Second Generation XM (2011-2026) / Kia Sorento XM 2011-2026 Service Manual / Body Electrical System / Fuses And Relays / Component Location

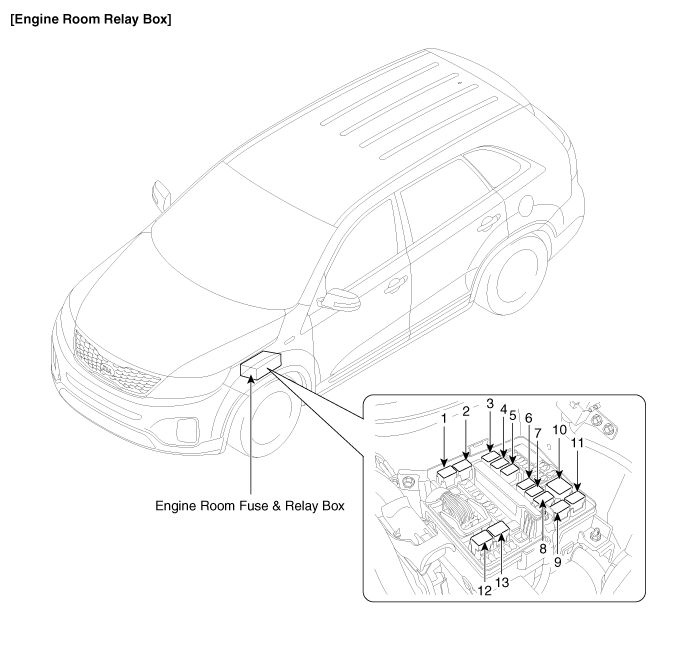

| 1. Start relay #2 (W/O immo./smart key) / ACC relay (With smart key) 2. Start relay #1 3. Windshield deicer relay 4. Power outlet relay |
5. Wiper relay (low) 6. Burglar alarm horn relay 7. Head lamp RH relay 8. IGN 1 relay 9. IGN 2 relay |
10. Cooling fan relay 11. Rear glass defogger relay 12. Horn relay 13. Blower relay |

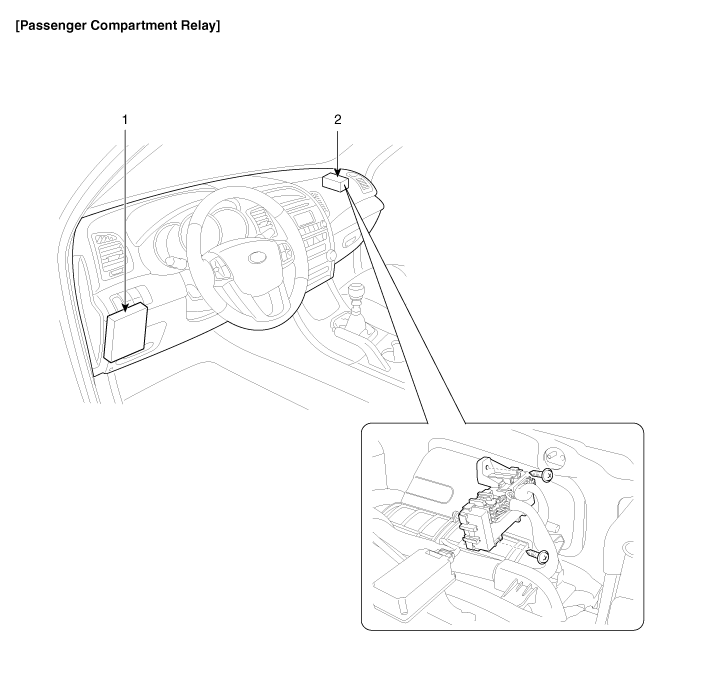

| 1. IPM 2. Rear wiper relay, Rear blower relay, Rear seat warmer LH relay, Rear seat warmer RH relay, Two turn unlock relay, Tailgate latch relay (Built-in ICM relay box) |
