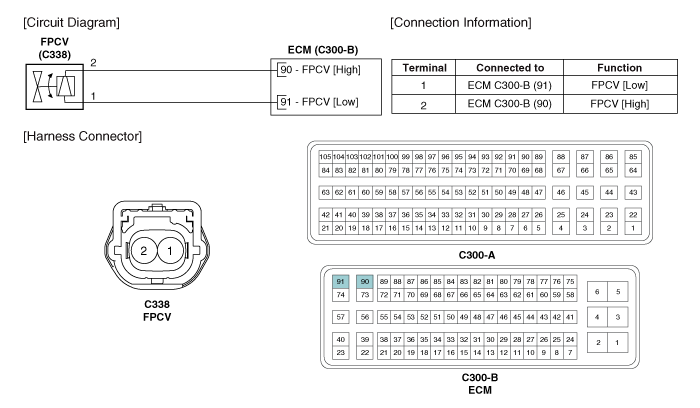

Kia Sorento: Circuit Diagram - Fuel Pressure Control Valve - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2023 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2023) / Kia Sorento XM 2011-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve / Circuit Diagram

Signal Waveform
...

Inspection
1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator valve connector. ...
