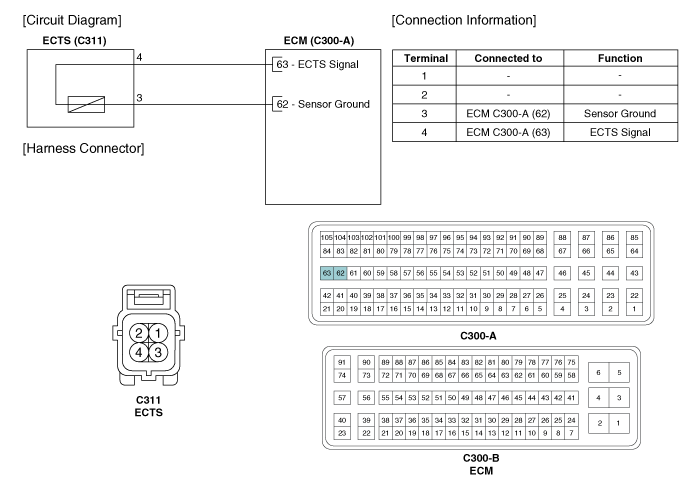

Kia Sorento: Circuit Diagram

Specification

Temperature Resistance (kΩ) °C °F -40 -40 48.14 -20 -4 14.13 ~ 16.83 0 32 5.7 ...

Inspection

1. Turn the ignition switch OFF. 2. Remove the ECTS (Refer to "Removal"). 3. After immersing the ther ...

See also:

2. TCM terminal function
Connector [A] Pin Description Pin Description 1 - 45 Inhibitor switch signal 'S2' 2 - 46 Inh ...

Compressor Inspection
1. Check the plated parts of the disc & hub assembly (A) for color changes, peeling or other damage. If there is damage, replace the clutch set. ...

Special Service Tools
Item Illustration Application Fuel Pressure Gauge (09353-24100) Measuring the fuel line pressure Fuel Pressure Gauge Adapter ...
