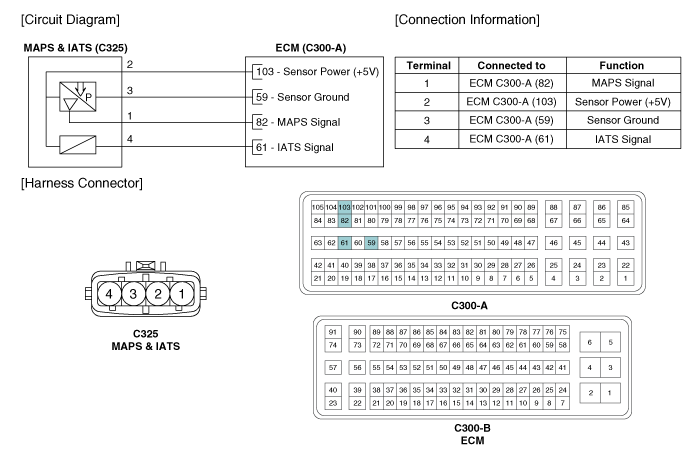

Kia Sorento: Circuit Diagram - Manifold Absolute Pressure Sensor (MAPS) - Engine Control System - Engine Control / Fuel System - Kia Sorento XM 2011-2025 Service ManualKia Sorento: Circuit Diagram

Second Generation XM (2011-2025) / Kia Sorento XM 2011-2025 Service Manual / Engine Control / Fuel System / Engine Control System / Manifold Absolute Pressure Sensor (MAPS) / Circuit Diagram

Specification
Pressure [kPa (kgf/cm², psi)] Output Voltage (V) 20.0 (0.20, 2.9) 0.79 46.7 (0.47, 6.77) 1.84 101.3 (1.03, 14.7) 4.0 ...

Inspection
1. Connect the GDS on the Data Link Connector (DLC). 2. Measure the output voltage of the MAPS at idle and IG ON. Spe ...
