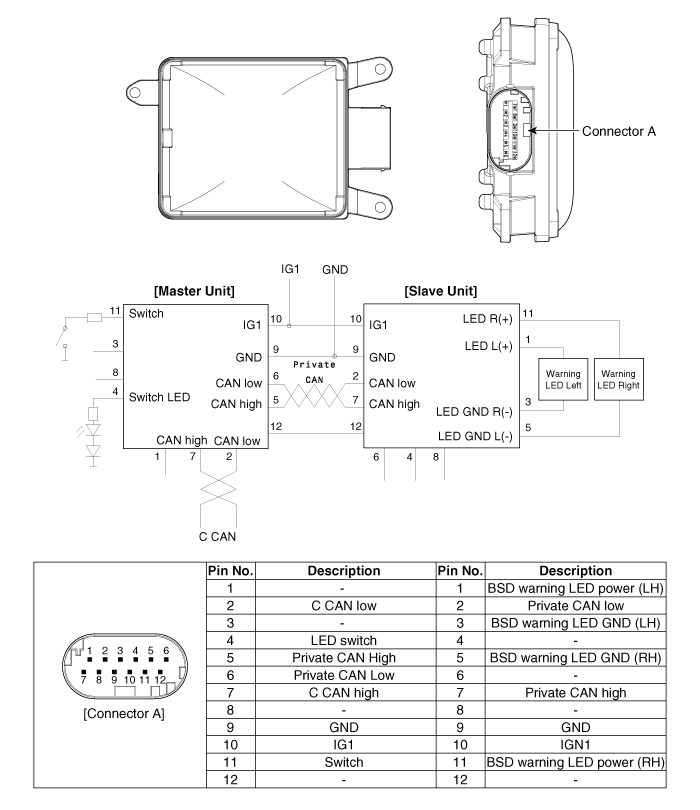

Kia Sorento: Blind Spot Detection Unit Circuit Diagram - Blind Spot Detection System - Body Electrical System - Kia Sorento XM 2011-2024 Service ManualKia Sorento: Blind Spot Detection Unit Circuit Diagram

Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Unit Circuit Diagram

Diagnosis With GDS
1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. ...

Blind Spot Detection Unit Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") ...
