Kia Sorento: Water Temperature Control Assembly Components - Cooling System - Engine Mechanical System - Kia Sorento XM 2011-2019 Service ManualKia Sorento: Water Temperature Control Assembly Components

Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components

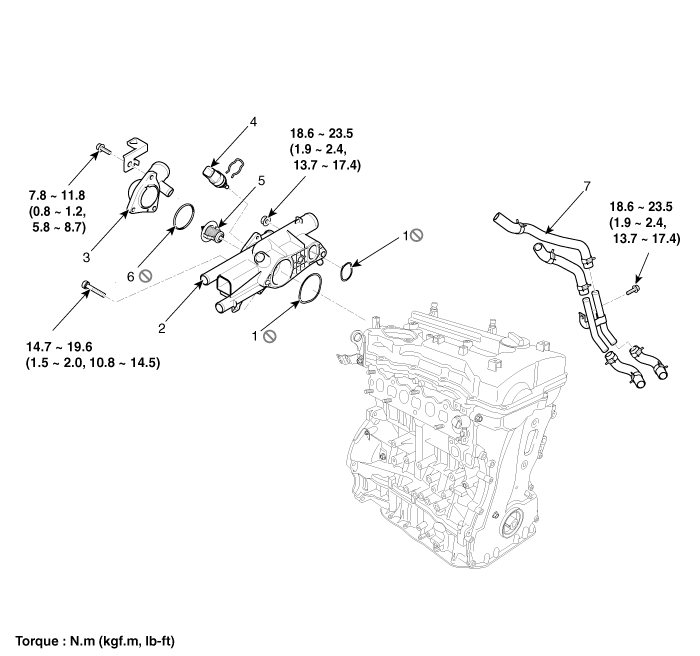

1. O-ring
2. Water temperature control assembly
3. Water inlet fitting
4. Engine coolant temperature sensor
5. Thermostat
6. Thermostat gasket
7. Oil cooler coolant hose
