Second Generation XM (2011-2019) / Kia Sorento XM 2011-2019 Service Manual / Driveshaft and axle / Rear Axle Assembly / Rear Hub - Carrier Components

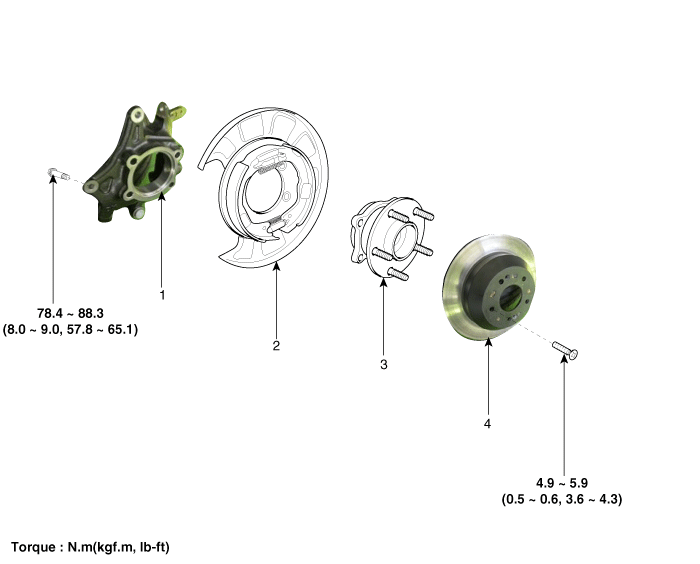

1. Rear carrier assembly
2. Parking brake assembly
3. Rear hub assembly
4. Rear brake disc

Rear Axle Assembly
...

Rear Hub - Carrier Removal
1. Remove the front wheel and tire (A) from front hub. Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...
