Kia Sorento: Component Location - Rear Parking Assist System - Body Electrical System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Component Location

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Body Electrical System / Rear Parking Assist System / Component Location

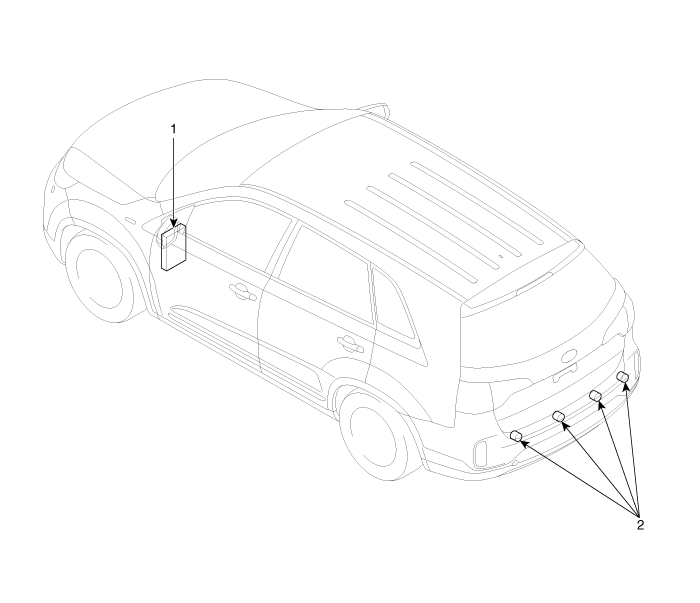

1. IPM (Intelligent intergrated Platfrom Moduel)
2. Ultrasonic sensor

Specification
Item Specification Ultrasonic sensor Voltage rating DC 12 V Detecting range 30 cm ~ 120 cm Operation voltage DC 9 ~ 16 ...

System Overview
RPAS (Rear Parking Assist System) is an electronic driving aid that warns the driver to be cautious while parking or in low speed environments. The sensor uses ultrasonic waves to detect obje ...
