Kia Sorento: Rear Bumper Components
Second Generation XM (2011-2024) / Kia Sorento XM 2011-2024 Service Manual / Body (Interior and Exterior) / Bumper / Rear Bumper Components

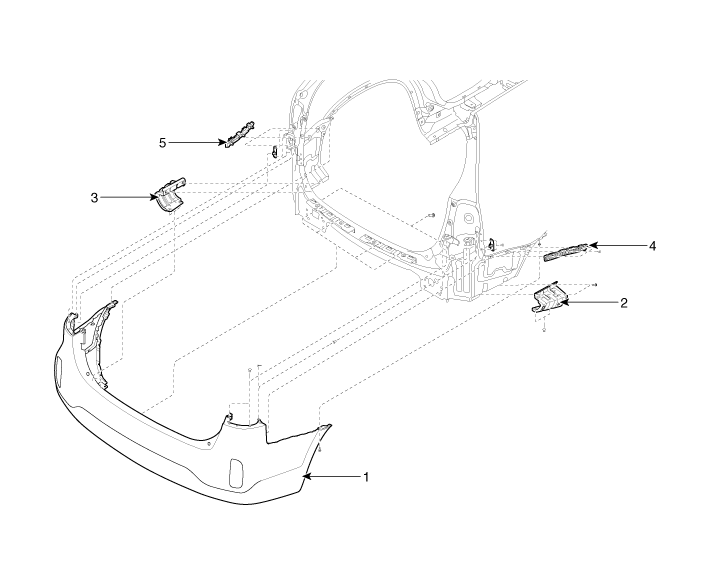

| 1. Rear bumper cover 2. Rear bumper lower bracket [RH] 3. Rear bumper lower bracket [LH] |
4. Rear bumper side bracket [RH] 5. Rear bumper side bracket [LH] |
