Kia Sorento: Power Door Lock Switch Removal - Power Door Locks - Body Electrical System - Kia Sorento XM 2011-2021 Service ManualKia Sorento: Power Door Lock Switch Removal

Second Generation XM (2011-2021) / Kia Sorento XM 2011-2021 Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Switch Removal

Driver Power Window Main Switch
1.
Disconnect the negative battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front door")
3.

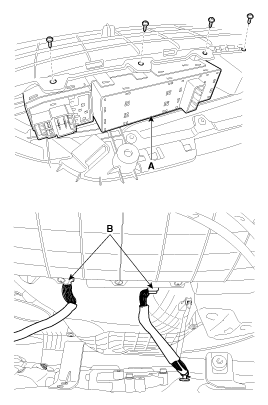

Remve the screws(Inside:4EA, outside:1EA) from power window switch assembly (A) and connectors (B).

4.
Remove the power window switch assembly (A) from front door trim.


Be careful not to damage the hook when removing the switch module.
Passenger window switch
1.
Disconnect the negative battery terminal.
2.
Remove the front door trim.
(Refer to Body - "Front door")
3.
Remove the passenger window switch assembly (A) from front door trim.

4.
Remove the passenger window switch assembly (A) from front door trim.


Be careful not to damage the hook when removing the switch module.
Power Door Lock Actuators Inspection
Front Door Lock Actuator 1. Remove the front door trim. (Refer to Body - "Front door") 2. Remove the front door module. ...

Power Door Lock Switch Installation
Driver Power Window Main Switch 1. Install the driver power window switch assembly and connectors. 2. Install the front door trim. ...
