Kia Sorento: Alternator Components - Charging System - Engine Electrical System - Kia Sorento XM 2011-2020 Service ManualKia Sorento: Alternator Components

Second Generation XM (2011-2020) / Kia Sorento XM 2011-2020 Service Manual / Engine Electrical System / Charging System / Alternator Components

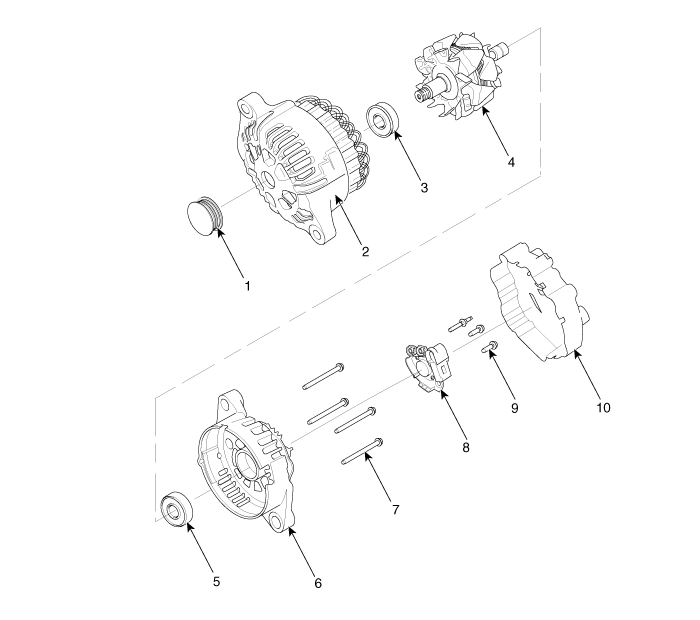

1. Overrun Alternator Pully (OAP)
2. Front bracket
3. Front bearing
4. Rotor
5. Rear bearing
6. Rear bracket
7. Through bolt
8. Regulator assembly
9. Regulator bolt
10. Rear cover

Alternator Specification
Alternator Item Specification Rated voltage 13.5V, 130A Speed in use 1,000 ~ 18,000 rpm Voltage regulator IC Regulator bui ...

Alternator Circuit Diagram
   • COM signal - When controlling the voltage generated, the ECM sends the target ...
