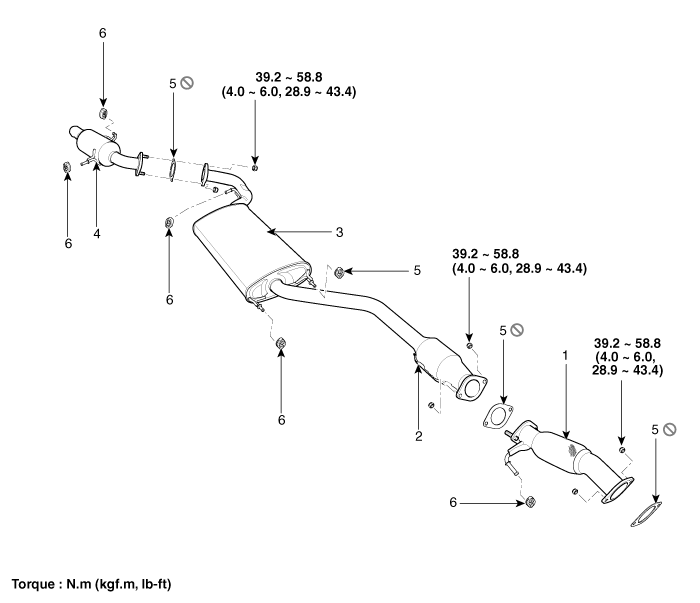

Kia Sorento: Muffler Components

Exhaust Manifold Removal and Installation

1. Remove the engine cover. 2. Disconnect the battery negative terminal. 3. Disconnect the front oxygen sensor ...

Muffler Removal and Installation

1. Remove the front muffler (A) after loosening the mounting nuts. Tightening torque: 39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft ...
