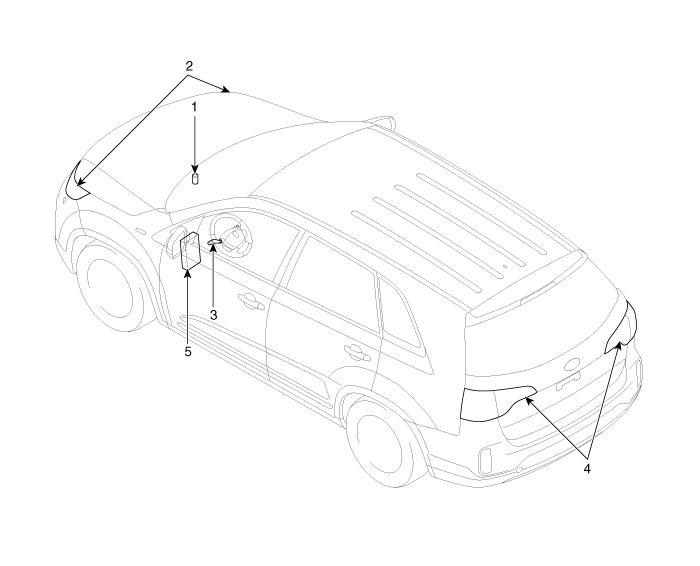

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. IPM (Intelligent intergrated Platform Module)

Specifications
Items Specifications Rated voltage 5V Load Max. 1mA Detection illuminations Tail lamp ON : 2.7 ± 0.05 (V) OFF : 4.3 ...

Circuit Diagram
...
